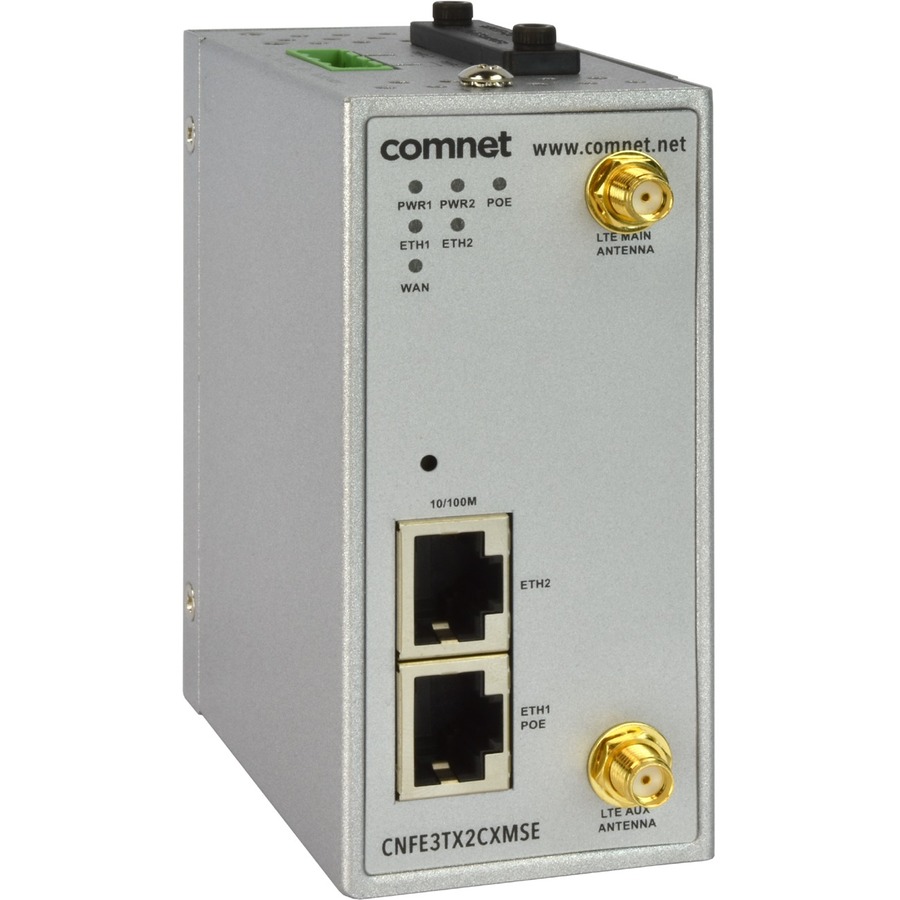

ComNet CNFE3TX2CXMSU 1 SIM Cellular, Ethernet Modem/Wireless Router
Manufacturer: ACRE
Mfr. Part: CNFE3TX2CXMSE
4G - LTE 1900, LTE 1700, LTE 850, LTE 700 - LTE, HSUPA, HSDPA, EDGE, GPRS(2 x External) - 1 x Network Port - 1 x Broadband Port - PoE Ports - Fast Ethernet - VPN Supported - Wall Mountable, DIN Rail Mountable
About This Product
Overview
The ComNet CNFE3TX2CXMS(U,E) is an edge Cellular VPN Gateway with 2 10/100TX Ports (1 × LAN, 1 × WAN) and 1 standard SIM card slot. It supports 802.1X and MAC filter for security control. The Gateway can be configured to operate in 3 modes: Dynamic/Static IP route, PPPoE authentication, and Modem dial up. The units can be powered by an IEEE 802.3af PoE compliant device on port 1 or through the 4-Pin terminal block with dual DC Inputs. The Gateways are DIN Rail mountable and feature a rigid IP-30 housing.
FEATURES
FEATURES
- Supports 802.1X Authentication
- HTTPS Support for Secure Management
- 4G LTE Modem Built In
- OpenVPN, IPsec VPN, PPTP VPN
- NAT Support (Virtual Server, Port Trigger, DMZ and UPnP)
- 1KV Isolation for PoE PD Port
- DIN-Rail and Wall Mountable
- Event Warning by Syslog, Email and SNMP Trap
- Cellular Antennas included
- Certified for AT&T Networks
- Remote locations where network access is required
- Wireless Perimeter Surveillance
- Temporary Network Surveillance Deployments
- Site to Site VPN
- Redundant Gateway
- Electrical substation SCADA and distribution automation networks; protective relaying systems; power transmission & distribution systems; remote/unattended wind farm, hydroelectric, and solar/photovoltaic power generation facilities; and other electrical utility-specific applications
- NERC-CIP-014 compliance for perimeter security, surveillance monitoring, and controlled access to electrical substations and power generating facilities, and other critical infrastructure/high value, mission-critical sites and assets
- Industrial/Factory Automation & Process Control SCADA Networks
- Distribution Automation: Remote status indication, monitoring, and control of reclosers, capacitor banks, voltage regulators, and other remotely-located electrical utilityspecific equipment, via the internal cellular radio link
- Integrated IP-Video, VOIP, and Data Transmission Networks
- Wastewater treatment plants, and suppliers of potable drinking water
- ITS/transportation closed-loop signalization and VMS/VDS/ surveillance/incident detection systems
- City Center security and surveillance monitoring
- Military, defense, and government communications networks
- No need to separate hardware from your service provider, enjoy fast Wi-Fi speed and save space
- Featuring Fast Ethernet port to speed up the transfer rate up to 100Mb/sec to connect your wired network
- Electrical power and data are transmitted using a single cable to devices such as Access Points, IP cameras or IP phones
- Wall mounting feature - Conveniently install the router while keeping the wires and cables organized
Quick Specifications
- Product Model
- CNFE3TX2CXMSU
- Product Type
- Modem/Wireless Router
- Broadband Transmission Technology
- Cellular Ethernet
- Cellular Generation
- 4G
- Cellular Network Supported
- LTE 1900 LTE 1700 LTE 850 LTE 700
- Cellular Data Connectivity Technology
- LTE HSUPA HSDPA EDGE GPRS
- Number of External Antennas
- 2
- Number of Network (RJ-45) Ports
- 1
