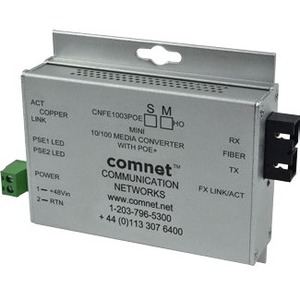

ComNet CNFE100(X)POE/M Transceiver/Media Converter
Network (RJ-45) - 1x PoE+ (RJ-45) Ports - Fast Ethernet - 10/100Base-TX, 100Base-FX - 1 x Expansion Slots - SFP - 1 x SFP Slots - Power Supply
About This Product
Overview
The ComNet CNFE100(X)POE/M Series 2-port media converters provide fullduplex fiber optic transmission of a single channel of 10/100 Mbps Ethernet data (10/100 BASE-TX) through multimode or single mode optical fiber. They provide full compliance with IEEE 802.3at as Power Sourcing Equipment (PSE), with a maximum power of 30 watts in Mode A or Mode B, making them ideal for those applications where the remote equipment draws significant power. A higher output 60 watt model is available. Mode A and mode B are selected by the media converter automatically. Plug-and-play design ensures ease of operation, and no optical adjustments are ever required.
- Exceeds the requirements of the latest PoE+ standard (IEEE 802.3at)
- The Ethernet electrical interface auto-negotiates to either 10 or 100 Mbps without the need for any user selection
- The optical interface operates at 100 Mbps (100-FX)
- Power Sourcing Equipment (PSE): Provides 30 watts in two modes at 48 VDC, for high output demand applications of remote Ethernet equipment
- 60 watt higher output version available
- SC, ST or SFP optical connectors available
- Automatic resettable solid state current limiters for modem protection
- A power supply providing 48 VDC at 1.25A is provided with each converter
- Electrical port supports both auto-negotiation of data speeds and automatic MDI/MDI-X crossover for full and half-duplex operation.
Quick Specifications
- Product Series
- CNFE100(X)POE/M
- Product Type
- Transceiver/Media Converter
- Total Number of Ports
- 1
- Network (RJ-45)
- Yes
- Number of PoE+ (RJ-45) Ports
- 1
- Media Type Supported
- Twisted Pair Optical Fiber
- Total Number of Expansion Slots
- 1
- Expansion Slot Type
- SFP
