ComNet 10/100/1000 Mbps Drop/Insert/Repeat Gigabit Uplink Switch with Optional PoE+
4 Ports - Manageable - 10/100Base-TX, 1000Base-FX - 2 Layer Supported - 2 SFP Slots - PoE Ports - Wall Mountable, Desktop, Rack-mountable, Rail-mountable - Lifetime Limited Warranty
About This Product
Overview

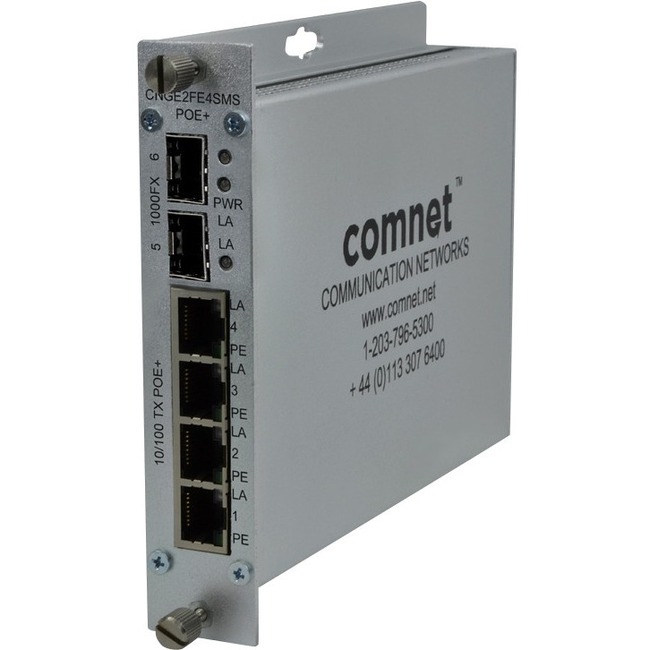

The ComNet TM CNGE2FE4SMS[POE][HO] is a six-port self-managed switch with uplink management functionality and provides 4 copper ports operating at 10/100 Mbps and two Gbps optical SFP ports. It is designed to combine four electrical ports and one Gbps SFP port into one of two optical SFP ports. The CNGE2FE4SMS[POE][HO] SFP ports forwards this data to the next network device or can be configured for drop and insert operation. The CNGE2FE4SMS[POE][HO] uses ComNet SFPs for connector and distance options. There is no programming required to use this product. The ComNet CNGE2FE4SMS[POE][HO] comes pre-programmed, preventing network video flooding with dip switch selection of fiber ports as uplink or as an unmanaged switch. Ports 1 to 4 can supply up to thirty (30) watts of power ("Power over Ethernet") per port based on the IEEE 802.3at standard. An optional High Output (HO) version is also available that can supply up to thirty (30) watts of PoE from ports 1 and 2 and up to sixty (60) watts of PoE from ports 3 and 4.
- Effectively reduces downtime with improved network performance
- Electrical power is transmitted along with data in a single cableto devices such as Access Points, IP cameras or IP phones
- With PoE+ Port, transfer data and up to 25.5 W of power on a single cable toplaces where a power outlet is not present
- Quickly and easily set up a wired network with 4 networking ports
- No need for power lines and outlets, the switch is capable of obtaining power from the PoE source
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- With Wall mounting feature, you can conveniently install the switch while keeping the wires and cables organized
- Management capability allows maximum efficiency and with unrestricted control
- Featuring Fast Ethernet ports to speed up the transfer rate up to 100mb/sec of large files and digital assets across your network
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
Quick Specifications
- Product Model
- CNGE2FE4SMSPOEHO
- Product Type
- Ethernet Switch
- Total Number of Network Ports
- 4
- Uplink Port
- No
- Modular
- No
- Stack Port
- No
- Port/Expansion Slot Details
- 4 x Fast Ethernet Network
- Media Type Supported
- Twisted Pair Optical Fiber
