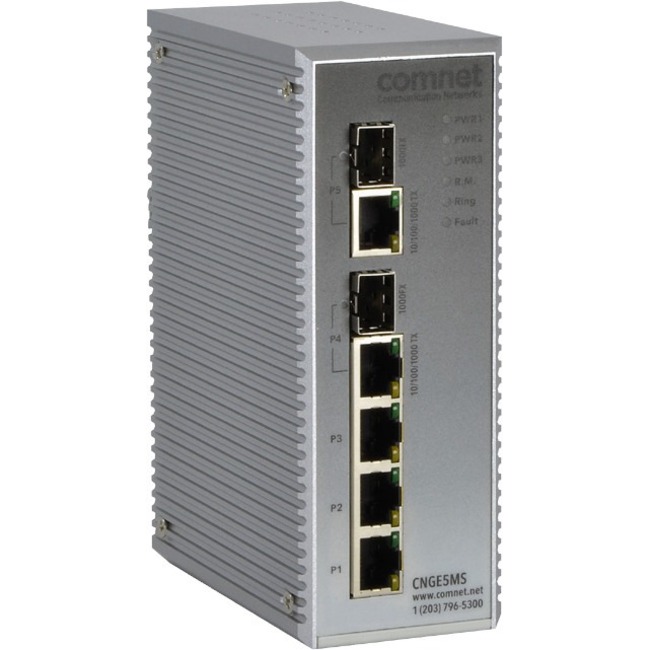

ComNet CNGE5MS Ethernet Switch
5 Ports - Manageable - Gigabit Ethernet - 10/100/1000Base-T, 1000Base-FX - 2 Layer Supported - 2 SFP Slots - Twisted Pair - Rail-mountable, Wall Mountable - Lifetime Limited Warranty
About This Product
Overview
The ComNet™ CNGE5MS is a hardened, industrial five port all gigabit managed Ethernet switch. It has three 10/100/1000Base-TX and two Gigabit combo ports that utilize ComNet SFP modules for fiber and connector type and distance. The IEEE 802.3 compliant unit is a redundant switch offering multiple Ethernet redundancy protocols, C-Ring, ComRing, C-RSTP and MSTP/RSTP/STP. This redundancy feature protects your applications from network interruptions or temporary malfunctions by redirecting transmission within the network. The CNGE5MS offers centralized and convenient management through a windows-based utility called eConsole. Redundant DC power inputs provide non-stop operation in case of power supply disruption. The backup power input will take over immediately when the primary DC power input fails. The unit provides relay outputs that can be set up to indicate events and notify in case of potential problems.
- Effectively increases available bandwidth on your network
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 5 ports
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- The switch is rail mountable, you can easily install it in racks with concrete stability
- Managed switch provides a reliable foundation for your network
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
Quick Specifications
- Product Model
- CNGE5MS
- Product Type
- Ethernet Switch
- Total Number of Network Ports
- 5
- Uplink Port
- No
- Modular
- No
- Stack Port
- No
- Port/Expansion Slot Details
- 5 x Gigabit Ethernet Network 2 x Gigabit Ethernet Expansion Slot
- Media Type Supported
- Twisted Pair
