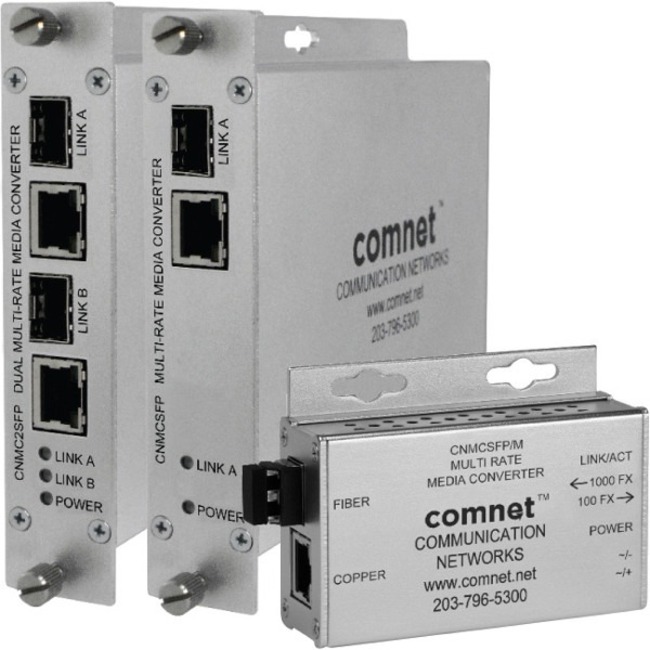

ComNet ComFit Dual 10/100/1000Mbps Ethernet Media Converter with IEEE 802.3at 30W PoE+
1 x Network (RJ-45) - Gigabit Ethernet - 10/100/1000Base-TX, 1000Base-FX - 120 km - 2 x Expansion Slots - SFP - 2 x SFP Slots - Power Supply - Rail-mountable, Standalone, Rack-mountable
About This Product
Overview
The ComNet Ethernet CNMC2+1SFP electrical-to-optical Ethernet media converters accept two 10/100 or 1000 Mbps electrical inputs and converts this to a single 100 or 1000 Mbps optical output (selected by a DIP switch) and the 100/1000 Mbps optical input back to the 10/100/1000 Mbps electrical output. "Auto-Negotiating" is supported on the copper interface side. These devices use either one or two optical fibers, depending upon the selection of sold-separately SFP optical module. The ComNet exclusive Demux feature allows for port isolation, replicating two media converters over one fiber. The ComNet exclusive Mux feature prevents network video flooding of multicast traffic with DIP switch selection of the fiber port as a dedicated uplink path. The CNMC2+1SFP series can be powered by wide range of AC or DC input power supplies.
- IEEE 802.3 compliant
- Designed for installation in harsh out-of-plant/ unconditioned industrial or roadside operating environments (-40 º to +75 ºC ambient). Fully compliant with the environmental requirements of NEMA TS-2 for Traffic Signal Control Equipment
- Status indicating LEDs provide rapid indication of critical operating parameters.
- Supports Jumbo Frames
- Voltage transient protection on all power and signal input/output lines provides protection from power surges and other voltage transient events.
- ComFit standard form factor is interchangeable between stand-alone or rack mount use.
- Uses customer-installed ComNet SFPs for compatibility with a wide range of optical fibers, optical connector types, and optical transmission distances (SFPs ordered separately).
- Compact form-factor saves space in those installations where space may be at a premium.
- Electrical port supports both auto-negotiation of data speeds and automatic MDI/MDI-X crossover for full and half-duplex operation.
- Standard ComFit models are hot-swappable.
Quick Specifications
- Product Series
- CNMC[2]SFP[POE][/M]
- Product Type
- Transceiver/Media Converter
- Total Number of Ports
- 1
- Network (RJ-45)
- Yes
- Number of Network (RJ-45) Ports
- 1
- Media Type Supported
- Twisted Pair Optical Fiber
- Maximum Distance Supported
- 120 km
- Total Number of Expansion Slots
- 2
