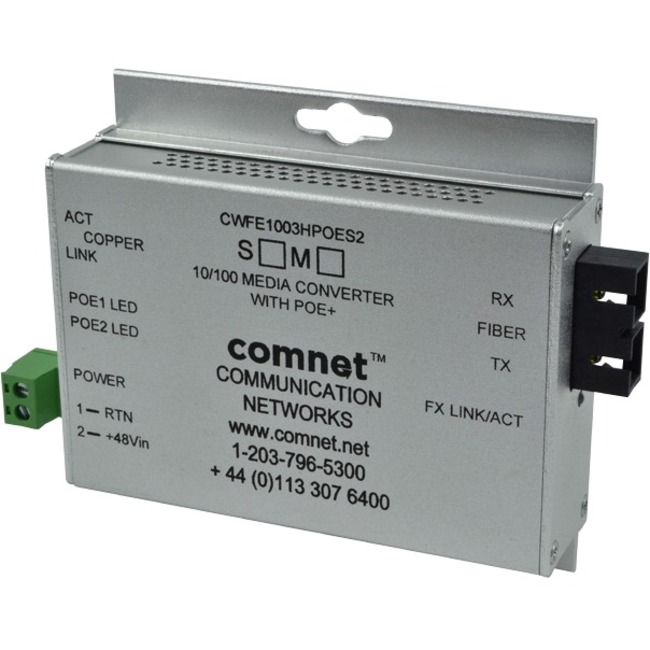

ComNet Commercial Grade 100Mbps Media Converter with 48V POE, Mini
Network (RJ-45) - 1x PoE+ (RJ-45) Ports - 2 x ST Ports - Multi-mode - Fast Ethernet - 10/100Base-TX, 100Base-FX - AC Adapter - Desktop, Rail-mountable
About This Product
Overview
The ComNet™ CWFE100(X)POE/M Series 2-port media converters provide fullduplex fiber optic transmission of a single channel of 10/100 Mbps Ethernet data (10/100 BASE-TX) through multimode or single mode optical fiber. Type ST, SC or SFP optical connectors are available. They provide full compliance with IEEE 802.3at as Power Sourcing Equipment (PSE), with a maximum power of 30 watts in Mode A or Mode B, making them ideal for those applications where the remote equipment draws significant power. A higher output 60 watt model is available. Mode A and mode B are selected by the media converter automatically. The Ethernet electrical interface auto-negotiates to either 10 or 100 Mbps without the need for any user selection, and the optical interface operates at 100 Mbps (100-FX). A power supply providing 48 VDC at 1.25A is provided with each converter. Plug-and-play design ensures ease of operation, and no optical adjustments are ever required.
- For efficient encoding/decoding of data into light pulses and then sending them to the other end as electrical signals for a dependable photoelectric conversion
- Supports optical fiber cable for durable performance, minimal signal loss, and fast data transfers to greater distances
- Expand your network capabilities with this 3 transceiver/media converter
- With 10/100Base-TX technology get up to 100Mbps data transfer rate over twisted pair cable
- The Desktop provides convenient installation
Quick Specifications
- Product Series
- CWFE100(X)POE/M
- Product Model
- CWFE1005POEM/M
- Product Type
- Transceiver/Media Converter
- Total Number of Ports
- 3
- Network (RJ-45)
- Yes
- DVI
- No
- USB
- No
- Management Port
- No
