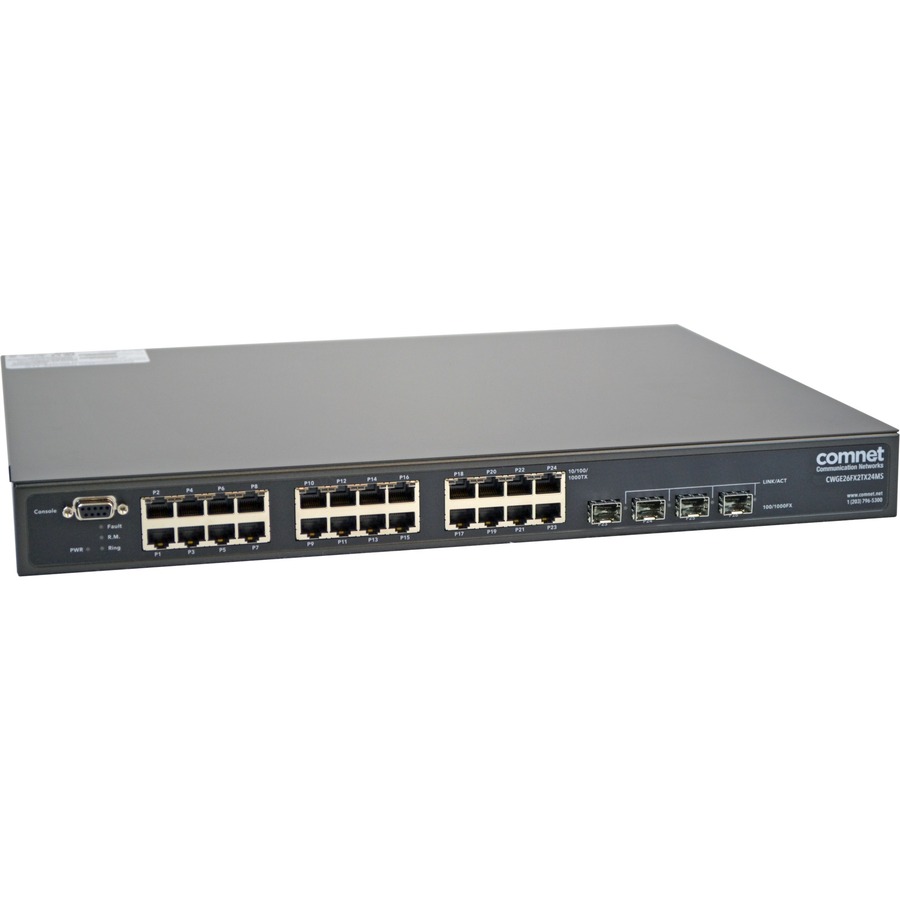

ComNet CWGE26FX2TX24MS Ethernet Switch

The ComNet CWGE26FX2TX24MS is a commercial Managed Ethernet Switch. It provides twenty-two 10/100/1000BASE-T(X) ports, plus two gigabit combo ports which are user-selectable between 10/100/1000BASE-T(X) ports or two 100/1000FX SFP* ports. A further two-100/1000FX SFP ports are also included. All SFP ports utilize ComNet SFPs for fiber and connector type and distance. The CWGE26FX2TX24MS is a redundant switch offering multiple Ethernet redundancy protocols to protect your applications from network interruptions or temporary malfunctions by redirecting transmission within the network.

FEATURES:

• Supports 26 Gigabit Ports:
• 2 100/1000Base-FX SFP Ports
• 2 Gigabit Combo Ports (RJ-45/SFP)
• 22 10/100/1000BASE-T(X) RJ-45 Ports
• Supports Private VLAN
• Supports IPV6 new Internet protocol version
• IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic
• Supports multiple redundant network rings
• Supports Jumbo frame up to 9.6K Bytes
• HTTPS/SSH protocol to enhance network security
• Supports SNTP client
• Supports application-based QoS management
• Supports Device Binding security function
• Supports ACL and 802.1x User Authentication for security
• Internal Power Supply
• STP/RSTP/MSTP (IEEE 802.1s/w/D) supported
• Windows utility, eConsole, supports centralized management, and is web-based configurable, or by Telnet and console (CLI) ports
• Supports IP-based bandwidth management
• SNMP V1/V2c/V3, RMON and 802.1Q VLAN for secure network management
• Fastest Redundant Ethernet Ring: C-Ring. Recovery time <30ms, with up to 250 switches within the ring
• Low-profile 1-RU (1.75-inch) high rack-mountable chassis mounts within any standard 19-inch equipment rack
• Operating Temperature: 0° to +50° C
• Multiple warning notifications for unexpected events
• Supports LLDP (Link Layer Discovery Protocol)

APPLICATIONS:

• HD Surveillance
• High-Port Count Ethernet Hub Locations
