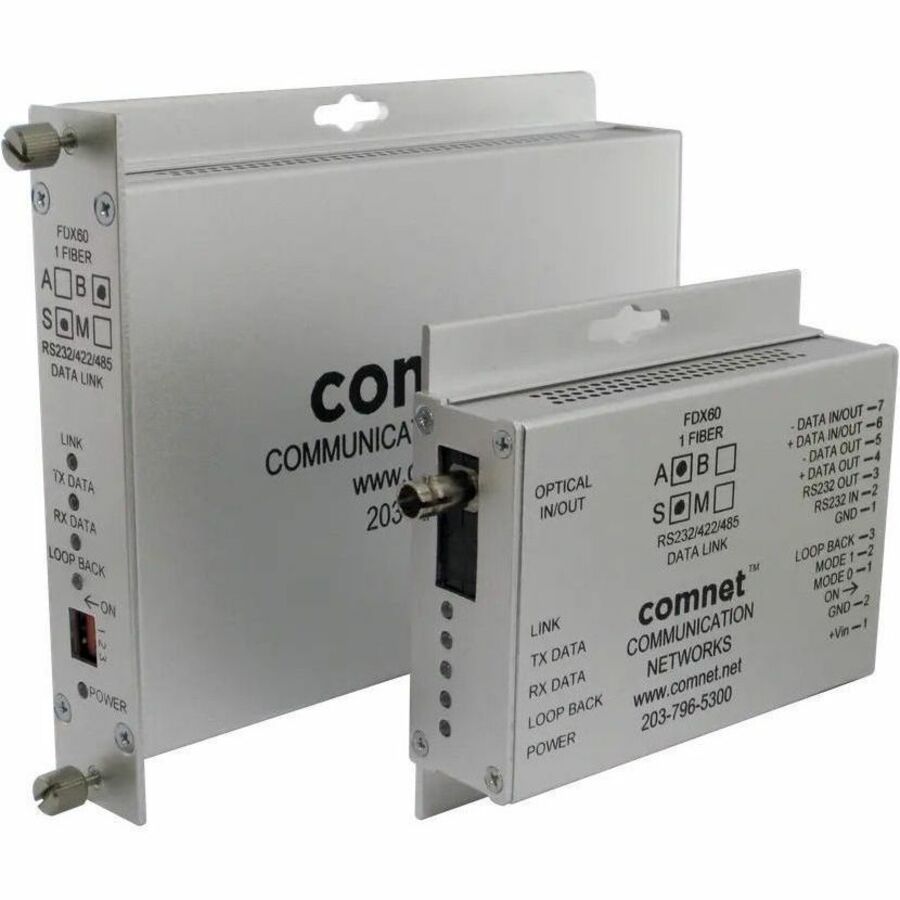

ComNet RS232/RS422/RS485 Data Transceiver
Manufacturer: ACRE
Mfr. Part: FDX60S2
1 x ST Ports - Simplex, DuplexST Port - Single-mode - 1310 nm, 1550 nm Fiber - 69 km - Power Supply - Rack-mountable, DIN Rail Mountable, Standalone
About This Product
Overview
The ComNet FDX60 series data transceivers provide point-to-point transmission of simplex or duplex EIA RS232/RS422/RS485 (2W/4W) data signals over one or two optical fibers. The transceivers are transparent to data encoding allowing for broad-range compatibility. Models within this series are available for use with multimode or single mode optical fiber. The FDX60 has a built-in fiber link test feature that allows for the testing of the fiber.
- Meets EIA RS232C/D and RS422/RS485 (2 or 4-wire) specifications
- Robust design assures extremely high reliability in unconditioned out-of-plant/roadside environments
- NTCIP compatible
- Fiberlink Fiber Link Tester
- Wide optical dynamic range: optical attenuators are never required
- Designed to meet full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/lowline voltage conditions and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment.
- Voltage transient protection on all power and signal input/ output lines provides protection from power surges and other voltage transient events.
- LED status indicators confirm operating status
- Plug-and-play design ensures ease of installation and no electrical or optical adjustments are ever required.
- ComFit form factor allows the unit to be Interchangeable between stand-alone or rack mount use, or it can be DIN-rail mounted with optional DINBKT1 or DINBKT4 mounting kit.
Quick Specifications
- Product Series
- FDX60(M,S)[-M]
- Product Type
- Transceiver/Media Converter
- Total Number of Ports
- 1
- Number of ST Ports
- 1
- ST Port Type
- Simplex Duplex
- Media Type Supported
- Optical Fiber
- Fiber Mode Supported
- Single-mode
- Fiber Optic Cable Wavelength
- 1310 nm 1550 nm
