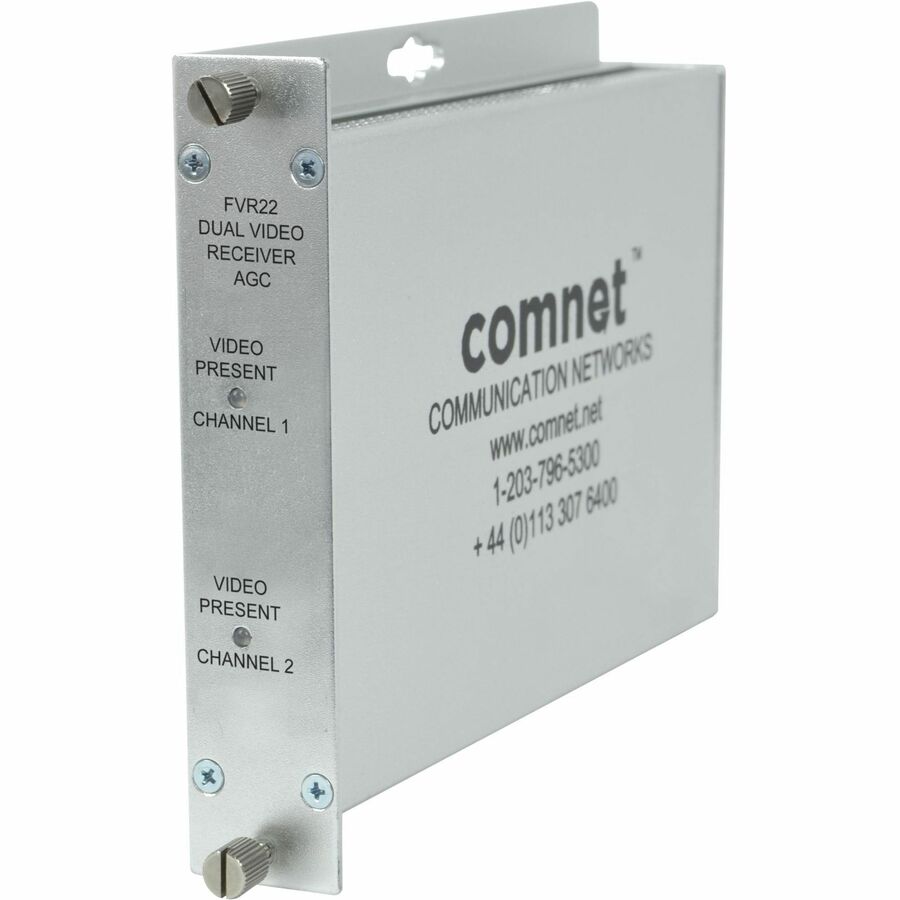

ComNet AGC Dual Video Receiver (850 nm)
Manufacturer: ACRE
Mfr. Part: FVR22/LV
2 Input Device - Optical Fiber - CCTV System - Rack-mountable
About This Product
Overview
The ComNet FVR22/LV consists of two independent AM video fiber optic receivers in one module. It uses two independent multimode fiber optic cables to receive two separate signals from two transmitters. The module is not a multiplexer. The unit incorporates a "Loss of Video" relay for each channel. Upon loss of video signal or optical fiber break, the normally closed relay opens. The module is ideal for CCTV installations and the rack mount version can be used to double the fixed video capacity of the C1 rack for up to 28 independent video channels per card cage. The modules utilize Automatic Gain Control (AGC).
- Full color compatibility
- Designed to meet full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions, and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment.
- AM Video Transmission
- Plug-and-play design ensures ease of installation and no electrical or optical adjustments are ever required.
- Voltage transient protection on all power and signal input/output lines provides protection from power surges and other voltage transient events.
- Compatible with NTSC, PAL, or SECAM Video Standards
- Standard ComFit models are hot-swappable.
Quick Specifications
- Product Type
- Video Extender Receiver
- Number of Input Devices Supported
- 2
- Media Type Supported
- Optical Fiber
- Form Factor
- Rack-mountable
- Application/Usage
- CCTV System
- Country of Origin
- United States
- Limited Warranty
- Lifetime
