ComNet Video Transmitter
Manufacturer: ACRE
Mfr. Part: FVT10
Multi-mode - 850 nm Fiber - 4 km - DC - Rail-mountable, Rack-mountable
About This Product
Overview

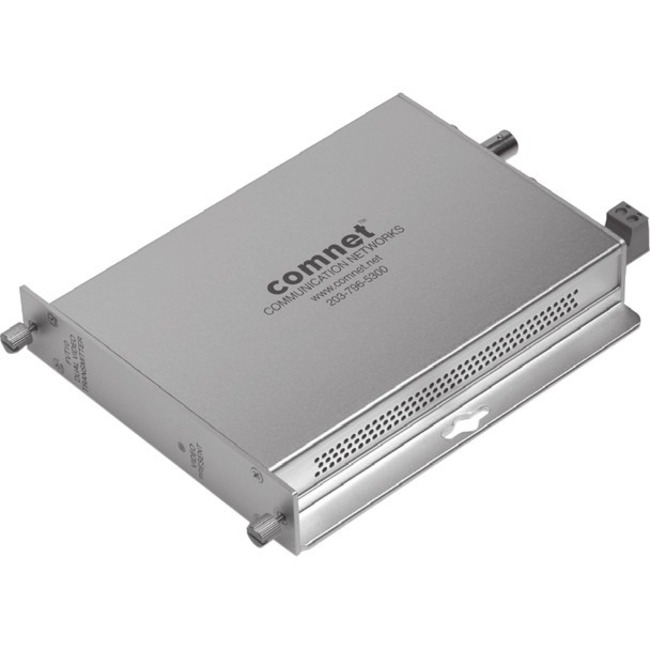

The ComNet FVT10 single channel transmitter supports one independent AM video signal on one independent multimode optical fiber. The FVT10 video transmitter is compatible with the FVR10, FVR10M, FVR11, FVR11M, FVR21 and FVR22 receivers. Plug-and-play design ensures ease of installation requiring no electrical or optical adjustments. The FVT10 is interchangeable between stand-alone or card mount configurations.
- AM Video Transmission
- NTSC, PAL, SECAM compatible
- Full color compatibility
- Plug-and-Play design for ease of installation
- No electrical or optical adjustments required
- Designed to meet full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low- line voltage conditions and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment.
- Voltage transient protection on all power and signal input/ output lines provides protection from power surges and other voltage transient events.
- Bi-color (Red/Green) LED indicators are provided for rapidly ascertaining equipment operating status
- Hot-swappable rack modules
- Interchangeable between stand-alone or rack mount use - ComFit
Quick Specifications
- Product Model
- FVT10
- Product Type
- Transceiver/Media Converter
- Media Type Supported
- Optical Fiber
- Fiber Mode Supported
- Multi-mode
- Fiber Optic Cable Wavelength
- 850 nm
- Maximum Distance Supported
- 4 km
- Fiber Optic Cable Core/Cladding Specification
- 50/125 µm 62.5/125 µm
- Power Source
- DC
