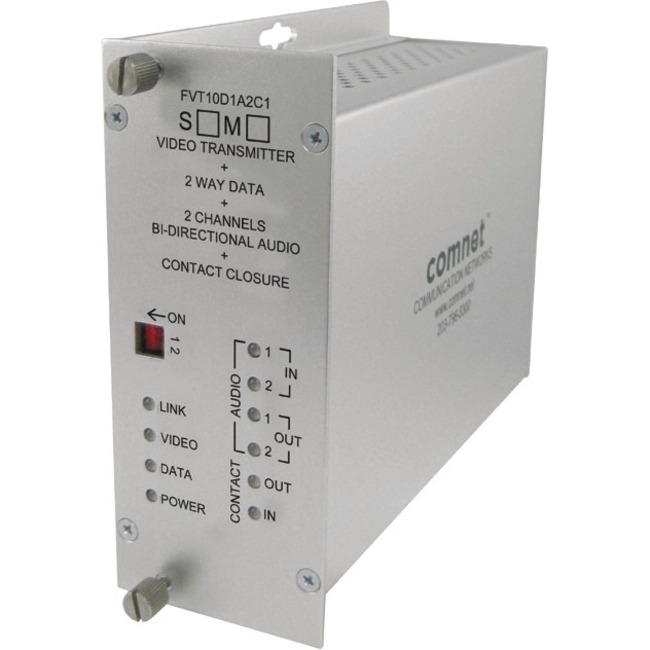

ComNet FVT10D1A2C1M1 Transceiver/Media Converter

The ComNet™ FVT/FVR10D1A2C1 video transmitter/data transceiver and video receiver/data transceiver series utilize 10-bit digital encoding and decoding for highquality video transmission that meets the requirements of EIA RS-250C for short-haul video transmission. These environmentally hardened units provide transmission of one independent video channel and one bi-directional data channel over one optical fiber and are ideal for use in unconditioned roadside or out-of-plant installations. They also provide transmission of two bi-directional audio signals and one bi-directional contact closure over the same fiber. The modules use 24-bit 96kHz sample rate digital encoding for superior transmission of balanced line-level audio. It also supports "up-the-coax" data transmission from all major manufacturers. Plug-and-play design ensures ease of installation and no electrical or optical adjustments are ever required.

FEATURES

• 10-bit digital video transmission: transmits one real-time color video signal and one bi-directional data signal on one optical fiber
• Supports RS232, RS422, and 2 or 4-wire RS485 with tri-state data interfaces
• Two bi-directional Audio Channels
• One bi-directional Contact Closure
• 24-Bit 96kHz Digitally Encoded Transmission
• 20Hz - 18 kHz Audio Bandwidth
• 600 Ohms Audio Input Impedence
• Transmits Balanced Line-Level Audio up to +6dBm
• Exceeds all requirements for EIA RS-250C short-haul transmission: Extremely high video performance
• Exceptionally low video distortion with zero Performance Variation vs. Optical Path Loss
• Ideally suited to networks requiring multiple physical layers where video degradation may be a problem
• Compatible with all NTSC, PAL, or SECAM CCTV camera systems
• Designed to meet full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/lowline voltage conditions and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment.
• Voltage transient protection on all power and signal input/ output lines provides protection from power surges and other voltage transient events.
• Robust design ensures extremely high reliability in unconditioned out-of-plant environments
• Bi-color (Red/Green) LED status indicators provide rapid indication of critical operating parameters
• Hot-swappable rack modules
• Interchangeable between stand-alone or rack mount use - ComFit
• Lifetime Warranty
