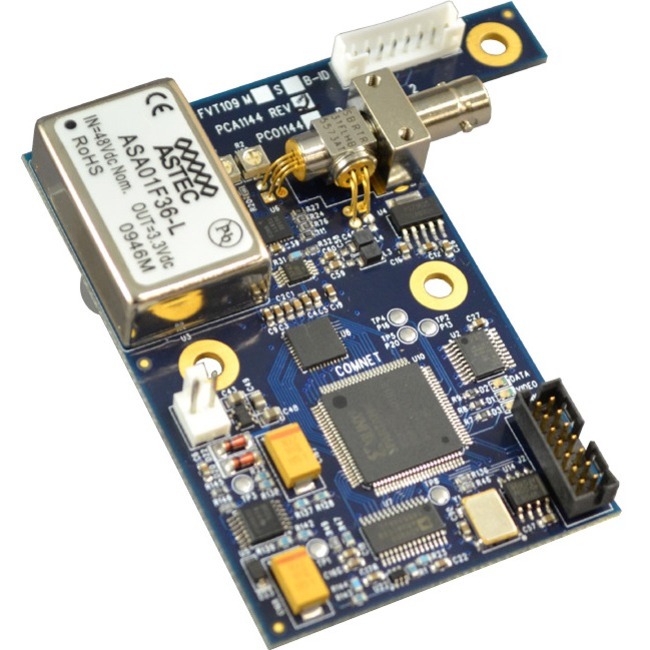

ComNet Video Receiver/Data Transceiver
Manufacturer: ACRE
Mfr. Part: FVT110S1
Single-mode - 1310 nm, 1550 nm Fiber - 48 km - Rail-mountable
About This Product
Overview
FOR BOSCH BILINXTM DOME CAMERAS
The ComNet™ FVT110(M,S)1/BO is a video and data transmitter that, when paired with the FVR110(M,S)1, supports the simultaneous transmission of short haul quality 10-bit EIA RS-250C digitally encoded video and bi-directional data over one multimode or single mode optical fiber. It is for use in Bosch Bilinx™ dome cameras, utilizing time-based correction these units can achieve distances of 48km. The module also supports Bosch Bi-Phase operation, which transmits camera control information over a simplex RS-422 connection. The FVT110(M,S)1/BO is designed to plug directly into the Bosch dome, and connects with power, video input and two way data via the Bosch electrical connector.
The ComNet™ FVT110(M,S)1/BO is a video and data transmitter that, when paired with the FVR110(M,S)1, supports the simultaneous transmission of short haul quality 10-bit EIA RS-250C digitally encoded video and bi-directional data over one multimode or single mode optical fiber. It is for use in Bosch Bilinx™ dome cameras, utilizing time-based correction these units can achieve distances of 48km. The module also supports Bosch Bi-Phase operation, which transmits camera control information over a simplex RS-422 connection. The FVT110(M,S)1/BO is designed to plug directly into the Bosch dome, and connects with power, video input and two way data via the Bosch electrical connector.
- Supports Bosch BilinxTM and Bosch Bi-phase telemetry systems
- One Data channel
- Distances up to 30 miles (48 km)
- Exceeds all requirements for RS-250C short-haul transmission: True broadcast video performance
- Time-Base Corrected Up-the-Coax Data
- Compatible with all NTSC or PAL camera systems
- Designed to meet full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low- line voltage conditions and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment.
- Voltage transient protection on all power and signal input/ output lines provides protection from power surges and other voltage transient events.
- Automatic resettable fuses on all power lines
- Bi-color (Red/Green) LED status indicators provide rapid indication of critical operating parameters
Quick Specifications
- Product Series
- FVT110(M,S)1/BO
- Product Type
- Transceiver/Media Converter
- Media Type Supported
- Optical Fiber
- Fiber Mode Supported
- Single-mode
- Fiber Optic Cable Wavelength
- 1310 nm 1550 nm
- Maximum Distance Supported
- 48 km
- Fiber Optic Cable Core/Cladding Specification
- 9/125 µm
- Form Factor
- Rail-mountable
