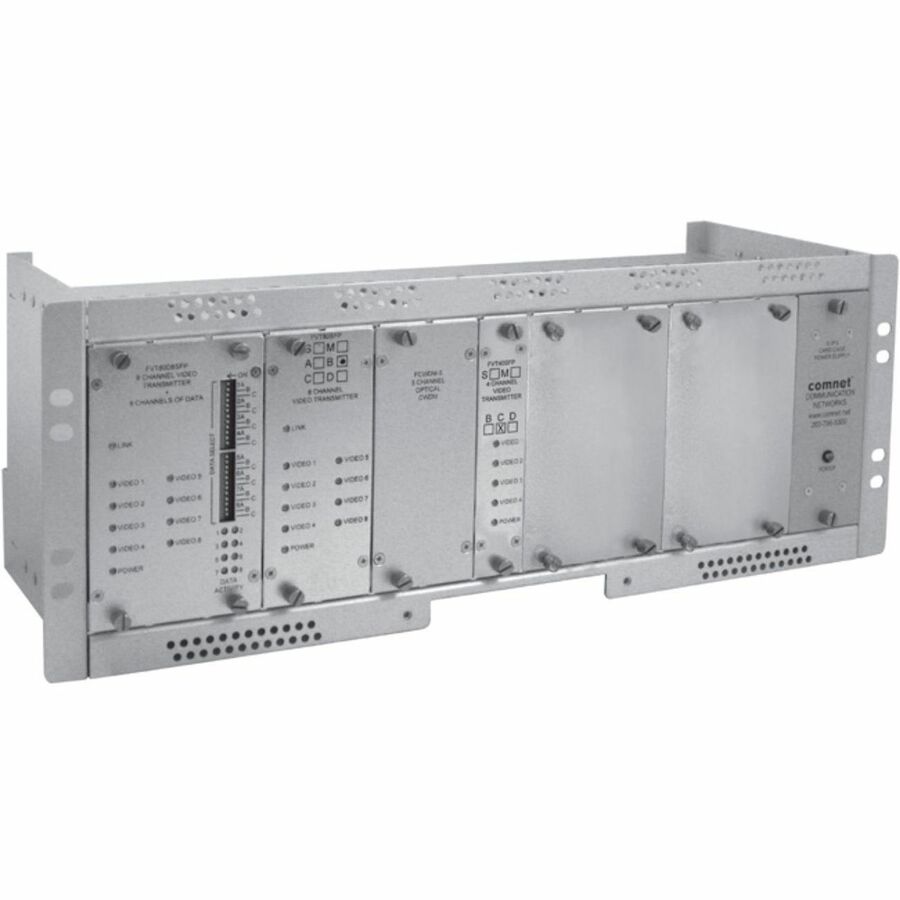

ComNet FVT200D8S1 Video Extender Transmitter
20 Output Device - 118110.24 ft RangeNetwork (RJ-45) - Optical Fiber, Coaxial - CCTV System - Rack-mountable
About This Product
Overview
The ComNet™ FVT/FVR200D8S1 video transmitter/data transceiver and video receiver/data transceiver series utilize 10-bit digital encoding and decoding for highquality video transmission that exceeds the requirements of EIA RS-250C for shorthaul video transmission. These environmentally hardened units provide transmission of 20 independent video channels and eight bi-directional data channels over one optical fiber and are ideal for use in unconditioned roadside or out-of-plant installations. These units are completely transparent to and universally compatible with any NTSC, PAL, or SECAM CCTV camera systems, data channels can be set independently for RS232, RS422 and 2 or 4-wire RS485, Sensornet, Bi-phase and Manchester. Plug-and-play design ensures ease of installation and no electrical or optical adjustments are ever required.
- 10-Bit digitally encoded video transmission, transmits 20 real time/full frame color video signals and 8 bi-directional data signals on one optical fiber
- Supports RS232, RS422, and 2 or 4-wire RS485, Sensornet, Bi-phase and Manchester
- Exceeds all requirements for EIA RS-250C short-haul transmission: Extremely high video performance
- Exceptionally low video distortion with zero Performance Variation vs. Optical Path Loss
- Compatible with all NTSC, PAL, or SECAM CCTV camera systems
- Designed to meet full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/lowline voltage conditions and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment.
- Voltage transient protection on all power and signal input/ output lines provides protection from power surges and other voltage transient events.
- Robust design ensures extremely high reliability in unconditioned out-of-plant environments
- Bi-color (Red/Green) LED status indicators provide rapid indication of critical operating parameters
- Lifetime Warranty
Quick Specifications
- Product Series
- FVT/FVR200D8S1
- Product Model
- FVT200D8S1
- Product Type
- Video Extender Transmitter
- Connectivity Technology
- Wired
- Number of Output Devices Supported
- 20
- Maximum Operating Distance
- 118110.24 ft
- Network (RJ-45)
- Yes
- Media Type Supported
- Optical Fiber Coaxial
