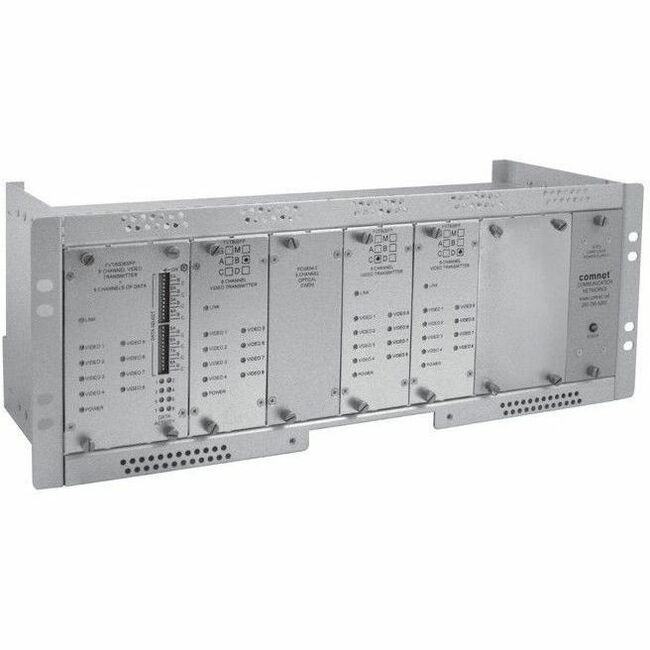

ComNet Video Transmitter/Data Transceiver

The ComNet™ FVT/FVR280D8S1 video transmitter/data transceiver and video receiver/data transceiver series utilize 10-bit digital encoding and decoding for highquality video transmission that exceeds the requirements of EIA RS-250C for shorthaul video transmission. These environmentally hardened units provide transmission of 28 independent video channels and eight bi-directional data channels over one optical fiber and are ideal for use in unconditioned roadside or out-of-plant installations. These units are completely transparent to and universally compatible with any NTSC, PAL, or SECAM CCTV camera systems, data channels can be set independently for RS232, RS422 and 2 or 4-wire RS485, Sensornet, Bi-phase and Manchester. Plug-and-play design ensures ease of installation and no electrical or optical adjustments are ever required.

FEATURES

• 10-Bit digitally encoded video transmission, transmits 28 realtime/full frame color video signals and 8 bi-directional data signals on one optical fiber
• Supports RS232, RS422, and 2 or 4-wire RS485, Sensornet, Bi-phase and Manchester
• Exceeds all requirements for EIA RS-250C short-haul transmission: Extremely high video performance
• Exceptionally low video distortion with zero Performance Variation vs. Optical Path Loss
• Compatible with all NTSC, PAL, or SECAM CCTV camera systems
• Designed to meet full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/lowline voltage conditions and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment.
• Voltage transient protection on all power and signal input/ output lines provides protection from power surges and other voltage transient events.
• Robust design ensures extremely high reliability in unconditioned out-of-plant environments
• Bi-color (Red/Green) LED status indicators provide rapid indication of critical operating parameters
• Lifetime Warranty

APPLICATIONS

High-Performance CCTV Systems
