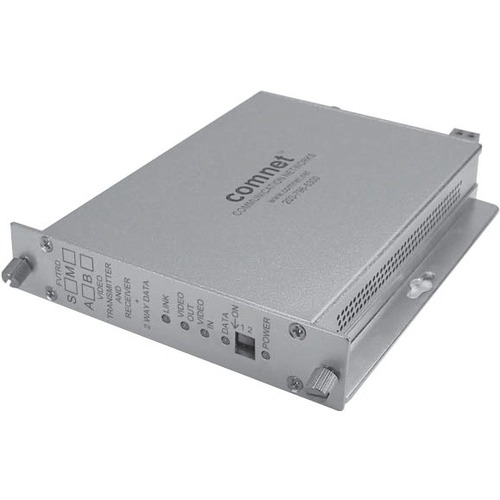

ComNet Video Receiver/Data Transceiver
Multi-mode - 1310 nm, 1550 nm Fiber - 3 km - Rail-mountable, Rack-mountable
About This Product
Overview
The ComNet™ FVTRD(M)(S)1 series video transmitter/ receiver and data transceiver supports simultaneous transmission of short-haul quality 10-bit bi-directional digital video or video sync plus bi-directional data over one multimode or single mode optical fiber. The module is universally compatible with major CCTV camera manufacturers and supports RS232, RS422 and 2 or 4-wire RS485 data interfaces, and most major data protocols. Plug-and-play design ensures ease of installation and no electrical or optical adjustments are ever required. Bi-color (Red/Green) LED indicators are provided for rapidly ascertaining equipment operating status. Packaged in the exclusive ComNet ComFit housing, these units may be either wall or rack-mounted, or may be DIN-rail mounted by the addition of ComNet model DINBKT1 adaptor plate.
- 10-bit digital bi-directional video transmission or video sync + bi-directional data
- Exceeds all requirements for RS-250C short-haul transmission: True broadcast video performance
- Supports RS232, RS422 or RS485 (2 or 4-wire) data interfaces
- Compatible with all NTSC, PAL, or SECAM CCTV camera systems
- Tested and certified by an independent laboratory for full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment.
- Voltage transient protection on all power and signal input/output lines provides unconditional protection from power surges and other voltage transient events.
- Automatic resettable fuses on all power lines
- Hot-swappable rack modules
- Interchangeable between stand-alone or rack mount use - ComFit
- Distances up to 30 miles (48 km)
Quick Specifications
- Product Type
- Transceiver/Media Converter
- Media Type Supported
- Optical Fiber
- Fiber Mode Supported
- Multi-mode
- Fiber Optic Cable Wavelength
- 1310 nm 1550 nm
- Maximum Distance Supported
- 3 km
- Fiber Optic Cable Core/Cladding Specification
- 62.5/125 µm
- Form Factor
- Rail-mountable Rack-mountable
- Height
- 1.1"
