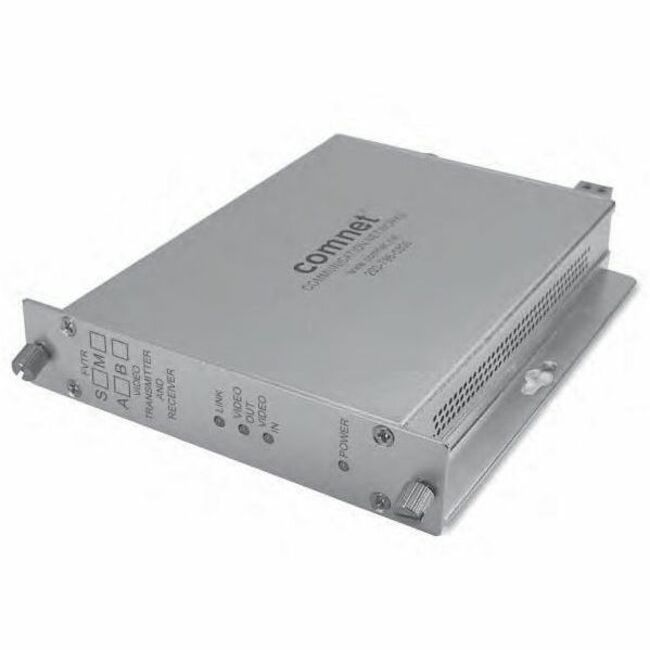

ComNet FVTRM1B Video Extender Transmitter
1 Input Device - 9842.52 ft Range - Optical Fiber, Coaxial - CCTV System - Wall Mountable, Rack-mountable, Surface-mountable, Rail-mountable, Standalone
About This Product
Overview
The ComNet™ FVTR(M)(S)1 series video transmitter/ receiver supports the transmission of short-haul quality 10-bit digital bi-directional video or sync over one multimode or single mode optical fiber. This module is universally compatible with major CCTV camera manufacturers. Plug-and-play design ensures ease of installation and no electrical or optical adjustments are ever required. Bi-color (Red/Green) LED indicators are provided for rapidly ascertaining equipment operating status. Packaged in the exclusive ComNet ComFit housing, these units may be either wall or rackmounted, or may be DIN-rail mounted by the addition of ComNet model DINBKT1 adaptor plate.
- 10-bit Digital Video Transmission
- Bi-directional Video or Sync
- Compatible with all NTSC, PAL, or SECAM CCTV camera systems
- Full Color Compatibility
- Exceeds RS-250C Short-Haul quality
- No In-field electrical or optical adjustments
- Bi-color (Red/Green) LED status indicators provide rapid indication of critical operating parameters
- Integrated WDM for greater product reliability
- Voltage transient protection on all power and signal input/output lines provides unconditional protection from power surges and other voltage transient events.
- Distances up to 30 miles (48 km) without repeaters
Quick Specifications
- Product Series
- FVTR(M)(S)1
- Product Model
- FVTRM1B
- Product Type
- Video Extender Receiver
- Connectivity Technology
- Wired
- Number of Input Devices Supported
- 1
- Maximum Operating Distance
- 9842.52 ft
- Media Type Supported
- Optical Fiber Coaxial
- Receiver Height
- 1.10"
