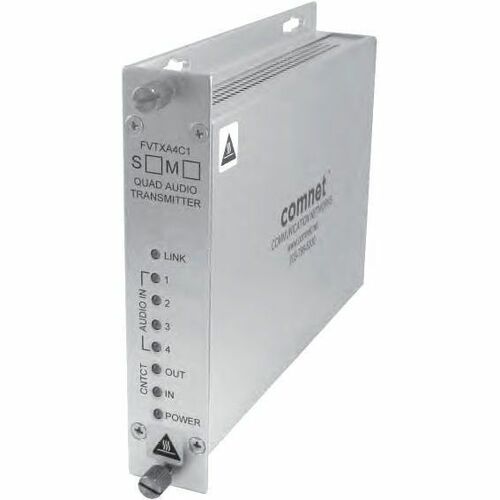

ComNet FVTXA4C1M Audio Extender Transmitter
4 Input Device - 1 Output Device - 9842.52 ft Range - Optical Fiber - Surface-mountable, Rack-mountable, Wall Mountable
About This Product
Overview
The ComNet™ FVT/FVRXA4C1 series audio multiplexer provides the transmission of four audio signals and one bi-directional contact closure over one multimode or single mode optical fiber. The modules use 24-bit 96kHz sample rate digital encoding for superior transmission of balanced line-level audio. Plug-and-play design ensures ease of installation and no electrical or optical adjustments are ever required. Bi-color (Red/Green) LED indicators confirm equipment operating status. Packaged in the exclusive ComNet ComFit housing, these units may be either wall or rack-mounted, or may be DIN-rail mounted by the addition of ComNet model DINBKT1 adaptor plate.
- 24-bit 96kHz Digital Transmission
- One Bi-directional Contact Closure
- 20Hz - 18kHz Audio Bandwidth
- 600 Ohms Audio Input Impedance
- No In-field electrical or optical adjustments
- Bi-color (Red/Green) LED status indicators confirm equipment operating status
- Transmits Balanced Line-Level Audio up to +6dBm
- Hot-swappable rack modules
- Interchangeable between stand-alone or rack mount use - ComFit
- Distances up to 30 miles (48 km) without repeaters
- Automatic resettable fuses on all power lines
- Lifetime Warranty
Quick Specifications
- Product Series
- FVT/FVRXA4C1(M)(S)
- Product Model
- FVTXA4C1M
- Product Type
- Audio Extender Transmitter
- Connectivity Technology
- Wired
- Number of Input Devices Supported
- 4
- Number of Output Devices Supported
- 1
- Maximum Operating Distance
- 9842.52 ft
- Media Type Supported
- Optical Fiber
