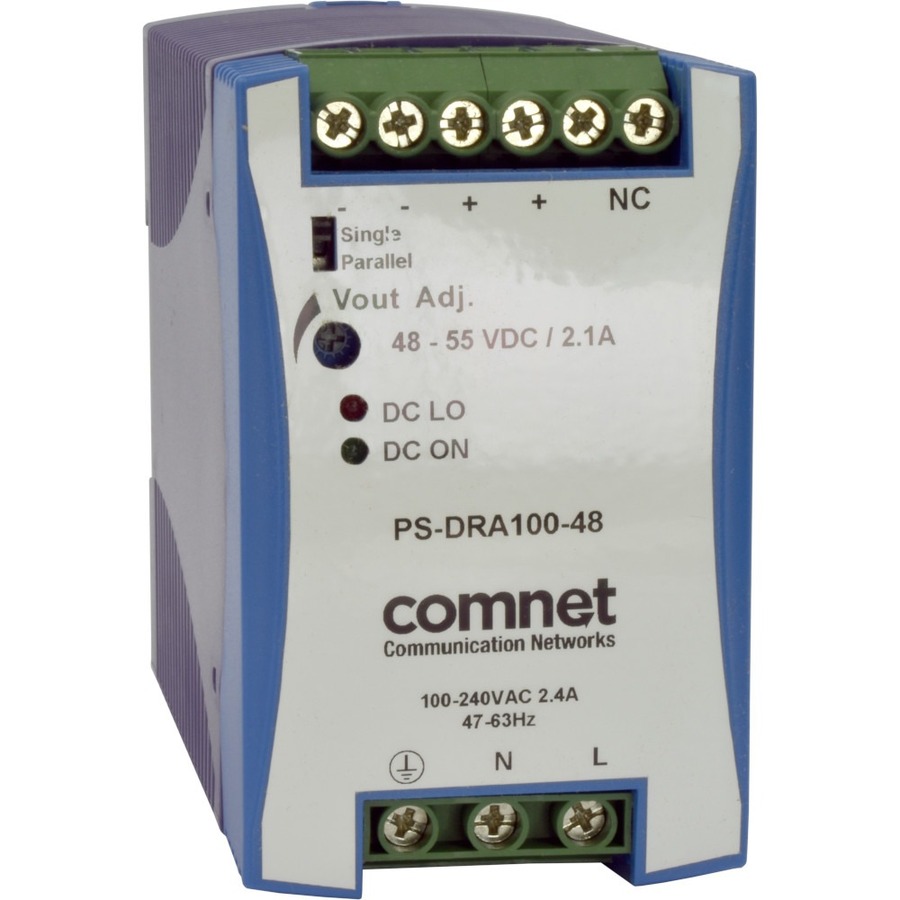

ComNet Industrial DIN Rail Mounting 100 Watt @ 48 Volt Power Supply
DIN Rail Mountable, Compact - 120 V AC, 230 V AC Input - 48 V DC Output - 100 W - 88% Efficiency
About This Product
Overview
The ComNet PS-DRA Series offer a complete range of high quality, low noise switching mode power supplies of various output sizes ideally suited to the entire ComNet industrial product range that require 48VDC power input. These rugged units are DIN rail mountable, providing an ideal mounting configuration to a mating ComNet industrial switch or any product using our range of DIN rail mounting adapters. The wide ambient operating temperature range permits installation in most out of plant and unconditioned environments, such as those found in intelligent transportation systems or factory automation/industrial control applications. Unconditional line and load protection is provided.
Features for PS-DRA100-48A
- Auto Select 115/230 VAC Input Voltage
- Designed for standard 7.5 or 15 mm DIN rail mount installations
- Adjustable output voltage range support
- High operating efficiency; up to 88%
- Compact form-factor saves space in those installations where space may be at a premium.
- No fans or forced-air cooling; cooling via natural convection eliminates unreliable and troublesome fans/moving parts, with no periodic maintenance requirements.
- Wide operating temperature range
- 3 Year Warranty
Applications
- Power Supplies for ComNet Industrial Products
- Converts current to the desired voltage and frequency to manage your power requirements
- The compatible output voltage of 48 V DC ensures that the device is ready to use when needed
- The maximum output power of 100 W boosts up the performance
Quick Specifications
- Product Series
- PS-DRA
- Product Type
- Power Supply
- Efficiency
- 88%
- Input Voltage
- 120 V AC 230 V AC
- Output Voltage
- 48 V DC
- Output Current
- 2.10 A
- Output Power
- 100 W
- Form Factor
- DIN Rail Mountable Compact
