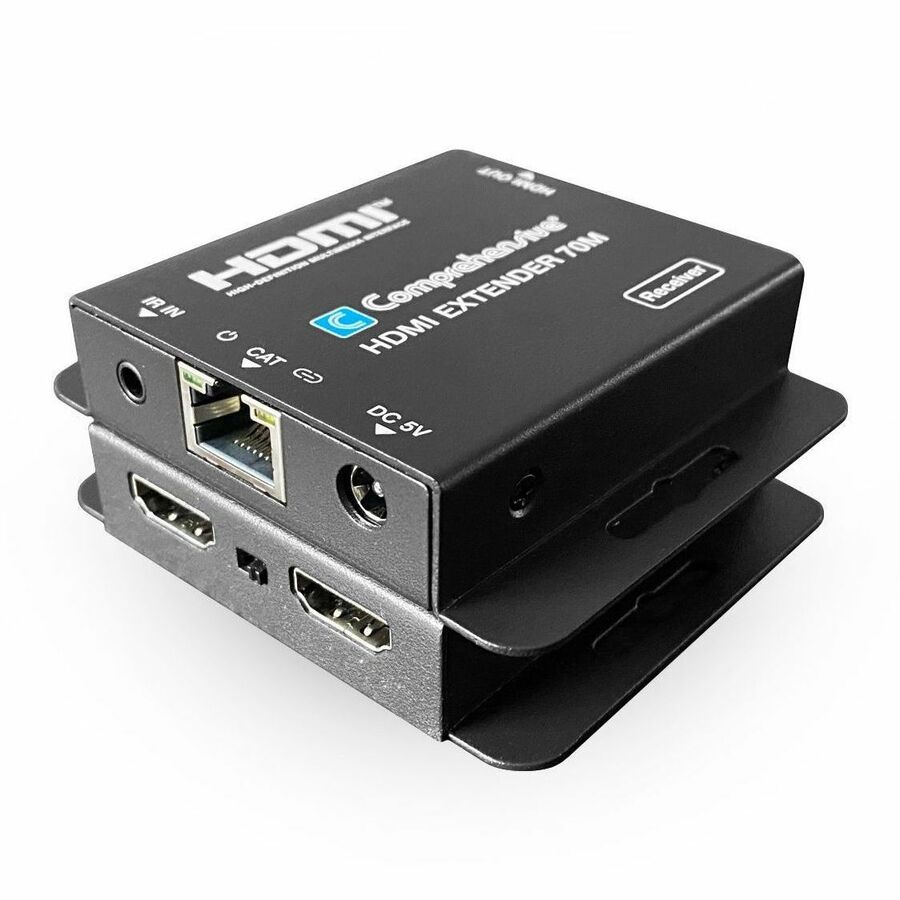

Comprehensive 4K HDMI Extender with IR control up to 230ft
1 Input Device - 1 Output Device - 230 ft Range - 2 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - 1080p - Full HD, 4K - 3840 x 2160 - Twisted Pair - Category 6, Category 5e - Display
About This Product
Overview
Comprehensive's CHE-1 HDMI extender is your low cost solution when an HDMI HD signal needs to be extended up to 230ft and 4K signals up to 130ft. The CHE-1 has signal transfer rates of up to 4.95Gbps with a full 1080p 60Hz and 10.2Gbps with 4K 30Hz video signal. The CHE-1 features EDID management, which allows and encourages source and display handshake for seamless integration. The CHE-1 also has an HDMI loop output for hookup of a local monitor or for cascading. In addition, this extender is also equipped with directional IR pass-through which allows for source or display control.
- Extend full 1080p 60Hz video signal up to 230ft or 4K @30Hz video signal up to 130ft over cat5e/6
- Follows standard IEEE-568B
- Allow for cascading via additional HDMI loop out port
- Supports copying EDID from receiver display or loop out display
- Compact design for easy and flexible installation
- HDMI 1.4 and HDCP 1.4 compliant
- Unit has an HDMI loop output to hook up a local monitor
- Signal rates up to 10.2Gbps
- RoHs Compliant
- 3 Year Warranty
Quick Specifications
- Product Model
- CHE-1
- Product Type
- Video Extender Transmitter/Receiver
- Connectivity Technology
- Wired
- Number of Input Devices Supported
- 1
- Number of Output Devices Supported
- 1
- Maximum Operating Distance
- 230 ft
- Graphics Modes
- Full HD 4K
- Supported Video Modes
- 1080p
