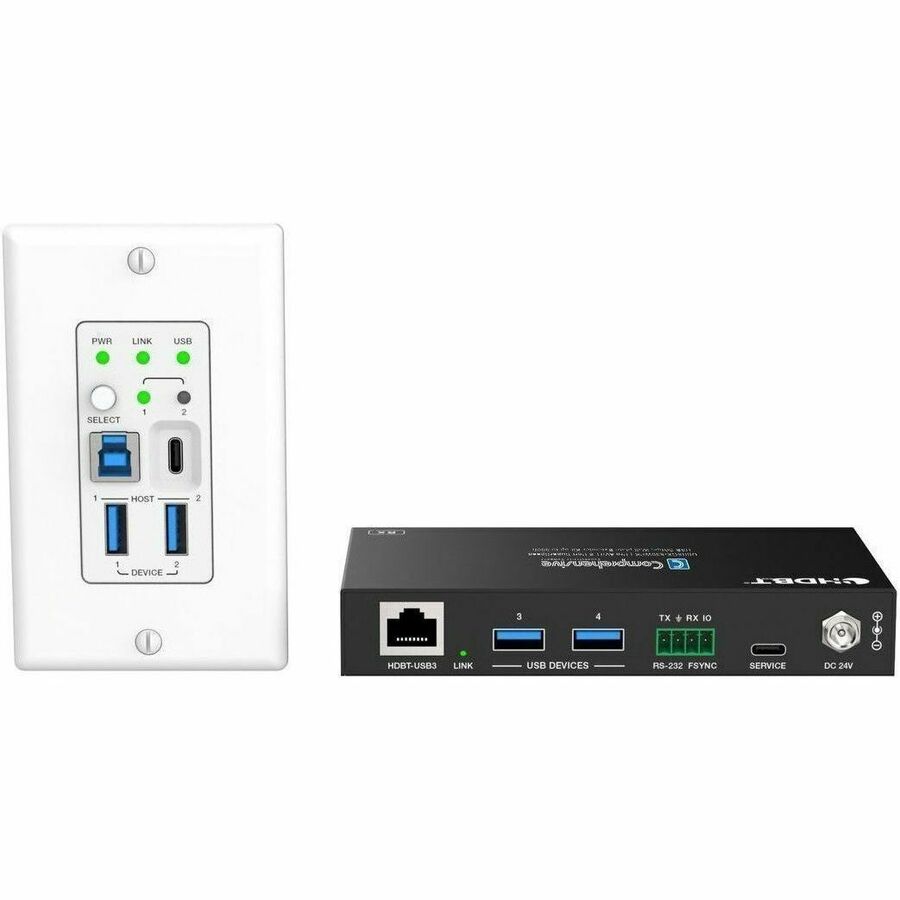

Comprehensive GX Video Extender Transmitter/Receiver
328.08 ft Range - 2 x Network (RJ-45) - 9 x USB - Twisted Pair - Category 6a, Category 6, Category 5e, Category 7 - Industrial, Digital Signage System, IP Camera, Conference Room, TV, Desktop PC, Mouse, Keyboard, Scanner, Printer - Yes
About This Product
Overview
Features
- Extension of USB 3.2 5Gbps up to 100m/330ft via a CAT6a cable
- USB 3.2 Gen 1 connectivity with data transfer rates up to 5Gbps
- Backwards compatible with USB 2.0 and 1.1
- Hardware acceleration for isochronous and bulk transfer
- TX features 1x USB-B and 1x USB-C selectable input ports
- Supports auto switching and manual switching modes
- RX features 1x USB-C and 3x USB-A output ports (2x 5V@1A and 2x 5V@1.5A)
- Supports RS-232 pass-through and API control
- Supports firmware upgrade via USB-C service port
- Supports FSYNC GPIO pass-through for industry camera use
- Supports bi-directional 24V PoC (Power over Cable), when TX or RX gets power, the other end does not need an external power supply
- Plug-and-play with no drivers, downloads, or software required
- Supports all USB transfer types (Control, Interrupt, Isochronous and Bulk)
- Optimized for cameras and video capture devices & touch screens
- Works with all major operating systems: Windows®, macOS™, Linux® and Chrome OS™
- 3 Year Warranty
Applications
- Industrial Control
- KVM Extension
- Professional Audio-Visual
- Digital Signage
- Security and monitoring
- Medical Device Connectivity
- Security: web camera, access control
- Conferencing Cameras
What is this product used for? (primary use):
Extends SuperSpeed USB 3.2 5Gbps: Extends USB 3.2 devices such as webcams, touch boards, video bars, Capture cards and VR headsets up to 330ft over a single Cat6A cable.
USB 3.2 Hub: Provides a 6-Port USB Hub to connect USB-A and USB-C devices.
Extends RS232 & FSYNC GPIO: Extends RS232 & FSYNC GPIO signals which is used to control switchers, control systems, industrial cameras, TVs, and audio equipment.
USB 3.2 Sharing: Allows 2x PCs to share and take advantage of a room's Webcam, Video bar, mouse, keyboard and also supports BYOM applications..
- Video Extender Transmitter/Receiver is a reliable audio/video transmission extending solution
- Download media from your memory card with the built-in USB along with adequate power supply
- Twisted pair media type helps minimize electromagnetic radiation and it also effectively resist external interference
- 328.08 ft maximum operating distance to allow efficient coverage and maximum usability
- Video Extender Transmitter/Receiver with industrial application/usage to ensure maximum dependability and optimal performance
- Video Extender Transmitter/Receiver allows quick retrieval of data files with maximum efficiency
Quick Specifications
- Product Series
- GX
- Product Type
- Video Extender Transmitter/Receiver
- Connectivity Technology
- Wired
- Maximum Operating Distance
- 328.08 ft
- HDBase-T
- Yes
- Network (RJ-45)
- Yes
- USB
- Yes
- Number of Network (RJ-45) Ports
- 2
