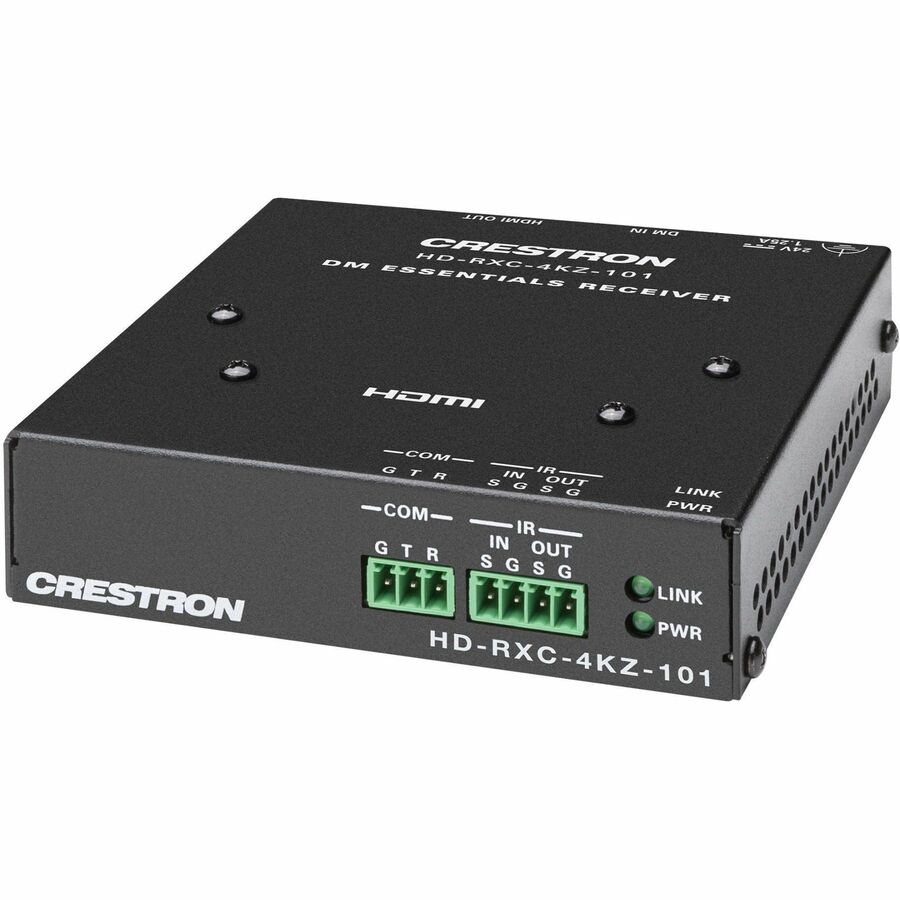

Crestron DM Essentials 4K60 4:4:4 Receiver for HDMI, RS-232, and IR Signal Extension over CATx Cable
130 ft Range - 1 x Network (RJ-45) - 1 x HDMI Out - 1 x Remote (IR) Input - 1 x Remote (IR) Output - 1080i, 1080p - 4K, 4K UHD, WQXGA, Full HD, UXGA, WUXGA, QWXGA - 4096 x 2160 - Twisted Pair - Category 5e - Flat Panel Display, Projector - Surface-mountable, Rack-mountable
About This Product
Overview
The HD-RXC-4KZ-101 is a DM® Essentials 4K60 4:4:4 receiver designed to interoperate with a DM® Essentials transmitter or DMPS Essentials switcher for the transmission of HDMI®, RS-232, and IR signals. A CAT5e or higher twisted pair cable (CrestronDM-CBL-8GorDM-CBL-ULTRAsold separately) is needed to connect the HD-RXC-4KZ-101 to the DM Essentials transmitter or DMPS Essentials switcher. For 1080p, WUXGA, and 2K signals, a cable length of up to 230 ft (70 m) is supported. For UHD and 4K signals, a cable length of up to 130 ft (40 m) is supported.
Interoperability with a DM Essentials Transmitter or DMPS Essentials Switcher
The DM Essentials input port of the HD-RXC-4KZ-101 must be connected to a DM Essentials output port of a DM Essentials transmitter or DMPS Essentials switcher. Examples of supported DM Essentials 4K60 4:4:4 transmitters are theHD-TXC-4KZ-101andHD-TXCA-4KZ-101. Supported DMPS Essentials switchers are theHD-PS622,HD-PS621,HD-PS402, andHD-PS401.
The HD-RXC-4KZ-101 can be configured and controlled only when it is used with a DMPS Essentials switcher. The web interface of the switcher can be used to configure the HD-RXC-4KZ-101. In addition, control system programming and .AV Framework™ software support of the HD-RXC-4KZ-101 is hosted by the switcher.
4K60 4:4:4 and HDR Support
The HD-RXC-4KZ-101 supports video resolutions up to 4K60 with 4:4:4 color sampling. HDR10, HDR10+, and Dolby Vision® video formats are also supported.
Compact, Surface-Mountable Design
Compact in design, the HD-RXC-4KZ-101 can be mounted onto a flat surface such a wall behind a flat-panel display or a ceiling above a projector. It can also be attached to a single rack rail in the back of an equipment cabinet. The HD-RXC-4KZ-101 can receive power from the included power pack or from the remote DM Essentials transmitter or DMPS Essentials switcher.
Key Features
- Interoperability with a DM® Essentials transmitter or DMPS Essentials switcher
- Point-to-point extension of HDMI®, RS-232, and IR signals over a CAT5e or higher cable
- DM Essentials transmission distance up to 130 ft (40 m) for UHD and 4K signals or up to 230 ft (70 m) for 1080p, WUXGA, and 2K signals
- 4K60 4:4:4 capability
- HDR10, HDR10+, and Dolby Vision® video formats
- Compliance with HDCP 2.3
- CEC (Consumer Electronics Control) pass-through capability
- Bidirectional RS-232 and IR pass-through capability
- EDID pass-through capability
- Compact, surface-mountable design
- Power from 24VDC power pack (included) or from remote DM Essentials transmitter or DMPS Essentials switcher
- Video Extender Receiver is all you need for dependable and productive audio/video transmission
- 1080i supported video mode for optimal viewing brilliance and efficiency
- 4096 x 2160 maximum video resolution for a spectacular, sharp display with added reliability
- HDMI out enables you to transfer data from your devices to video extender receiver with added efficiency
- Twisted pair media type helps minimize electromagnetic radiation and it also effectively resist external interference
- The HD-RXC-4KZ-101 video extender receiver provides plenty of freedom with wired connectivity
- 130 ft maximum operating distance for feasible operation and optimal coverage
- 4K graphics mode for an immersive and sharp viewing experience
- Surface-mountable form factor allows hassle-free and easy usage with increased efficiency
- Video Extender Receiver efficiently decodes audio video signals from the input device and sends them to the receiver to enable the display on your flat screen display
Quick Specifications
- Product Line
- Essentials
- Product Model
- HD-RXC-4KZ-101
- Product Type
- Video Extender Receiver
- Connectivity Technology
- Wired
- Maximum Operating Distance
- 130 ft
- Graphics Modes
- 4K 4K UHD WQXGA Full HD UXGA WUXGA QWXGA
- Supported Video Modes
- 1080i 1080p
- Maximum Video Resolution
- 4096 x 2160
