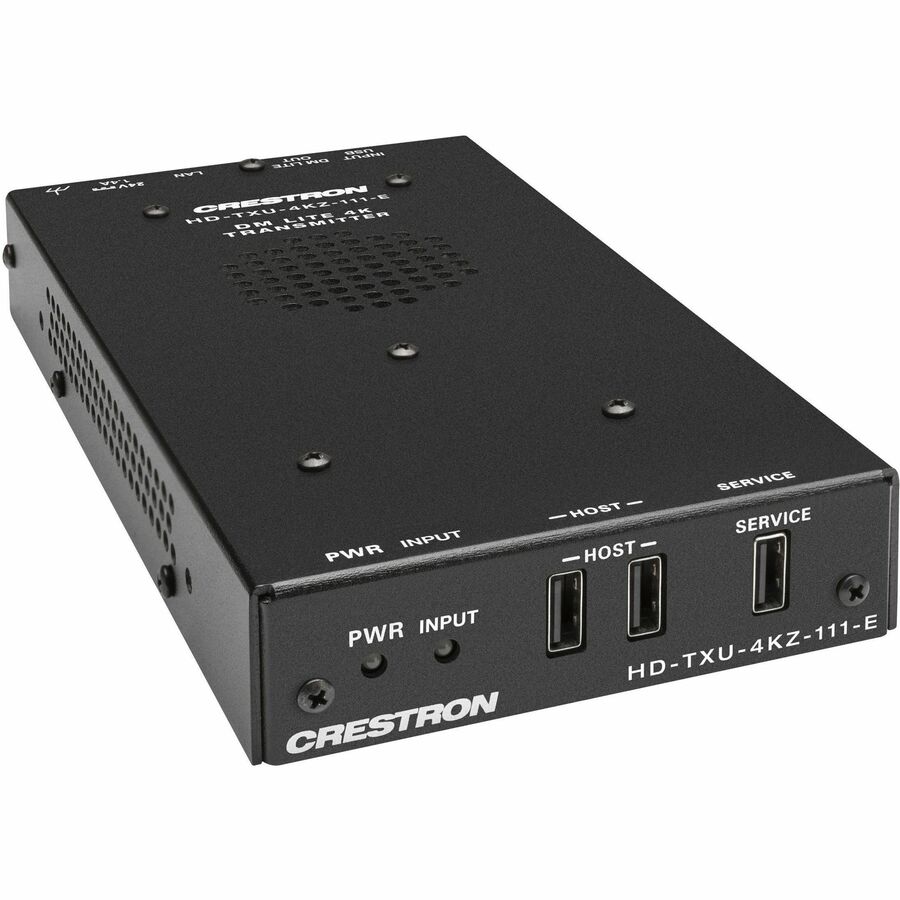

Crestron DM Lite 4K60 4:4:4 Transmitter for USB-C DisplayPort, USB 2.0, and Ethernet Signal Extension over CATx Cable

The HD-TXU-4KZ-111-E is a DM Lite® 4K60 4:4:4 transmitter designed to interoperate with a DM Lite HD-RXU-4KZ Seriesreceiver. A USB-C® input with DisplayPort™ Alt Mode capability enables signal extension of a DisplayPort AV signal along with USB 2.0 data. This is useful in applications where an AV source is located remotely from its destination, such as a display, projector, or codec solution. A CAT5e or higher twisted pair cable must be used to connect the HD-TXU-4KZ-111-E to the DM Lite receiver.1

Interoperability with a DM Lite HD-RXU-4KZ Series Receiver

For interoperability between the HD-TXU-4KZ-111-E and an HD-RXU-4KZ Series receiver, the DM Lite output port of the HD-TXU-4KZ-111-E must be connected to the DM Lite input port of the HD-RXU-4KZ Series receiver.

NOTE: USB 2.0 data extension is not supported if the HD-TXU-4KZ-111-E is paired with a DM Lite receiver other than an HD-RXU-4KZ Series receiver or paired with a DMPS Lite™ switcher (HD-PS Series or HD-RX-4K-210-C-E[-POE]).

4K60 4:4:4 and HDR Support

The HD-TXU-4KZ-111-E supports video resolutions up to 4K60 with 4:4:4 color sampling. HDR10, HDR10+, and Dolby Vision® video formats are also supported.2

USB 2.0 Data Extension

Two USB 2.0 host ports are provided on the HD-TXU-4KZ-111-E, enabling connection to a wide variety of supported USB 2.0 peripheral devices.3

Ethernet Pass-Through Capability

The HD-TXU-4KZ-111-E is equipped with a 100/1000 Mbps LAN port that passes an Ethernet signal over the DM Lite connection to the receiving endpoint. The LAN port of one endpoint in the pair can be connected to an Ethernet network while the LAN port of the other endpoint can be connected directly to an Ethernet-enabled device such as a PC.

Compact, Surface-Mountable Design

Compact in design, the HD-TXU-4KZ-111-E can be mounted onto a flat surface such as the underside of a table, behind a credenza, or inside a podium. It can also be attached to a single rack rail in the back of an equipment cabinet. The HD-TXU-4KZ-111-E can receive power from the included power pack or from the remote DM Lite receiver.4

Key Features

• DM Lite® transmitter functionality designed to interoperate with a DM Lite HD-RXU-4KZ Series receiver
• Point-to-point extension of a USB-C® DisplayPort™ AV signal, USB 2.0 data signals, and Ethernet signal over a CAT5e or higher cable
• USB-C® input with DisplayPort™ Alt Mode capability and USB 2.0 support
• DM Lite transmission distance up to 130 ft (40 m) for UHD and 4K signals or up to 230 ft (70 m) for 1080p, WUXGA, and 2K signals
• 4K60 4:4:4 capability
• HDR10, HDR10+, and Dolby Vision® video formats
• Ethernet pass-through capability
• Compliance with HDCP 2.3
• CEC (Consumer Electronics Control) pass-through capability
• EDID pass-through capability
• Compact, surface-mountable design
• Power from 24VDC power pack (included) or from remote DM Lite receiver
