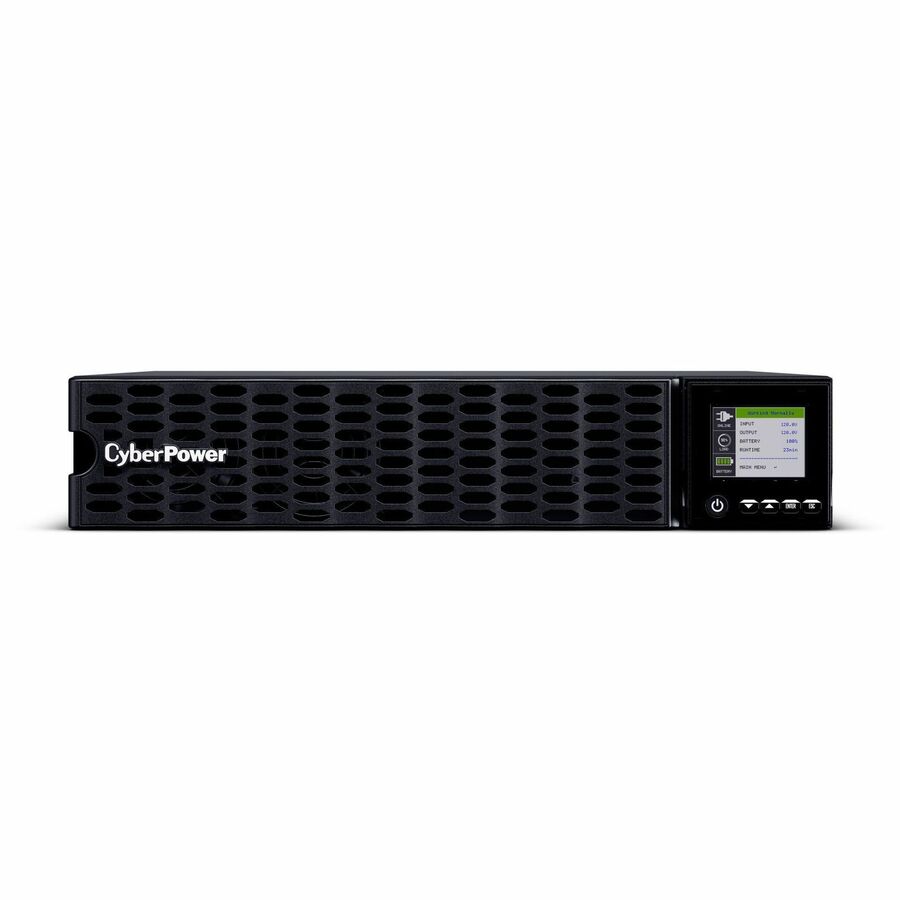

CyberPower OL3KRTHD Smart App Online UPS Systems
3000VA/2700W, 100 - 125 VAC, NEMA L5-30P, 2U, Rack / Tower, Sine Wave, 7 Outlets, LCD, PowerPanel® Business, $400000 CEG, 3YR Warranty
About This Product
Overview
The OL3KRTHD features double-conversion topology for seamless power protection, individual outlet control, and an optional RMCARD205.
For monitoring, this UPS offers a new state-of-the-art, multi-function, color TFT LCD screen that is simple to set up and easy to use. The color-coded alerts provide clear status of the UPS and the screen orientation rotates automatically when placed into a tower configuration.
The OL3KRTHD ensures maximum efficiency and capacity output with a Power Factor rating (PF) of 0.9. The energy-saving GreenPower UPS™ ECO Mode enables more than 96% efficiency while reducing power consumption and thermal dissipation.
The optional BP48VL2U01 Extended Battery Module (EBM) expands runtime and up to ten EBMs can be connected in a daisy-chain to the UPS for more backup power. Plus, it's backed by our three-year warranty (including batteries) and a $400,000 Connected Equipment Guarantee.
- Capacity: 3000 VA / 2700 W
- High Density: 2U Size
- Power Factor (PF): 0.9
- Topology: Double-Conversion
- Waveform: Sine Wave
- Output: 100, 110, 115, 120, 125 Vac User Configurable ±2%
- Runtime (half/full): 8.5 minutes / 2.7 minutes
- Plug type & cord: NEMA L5-30P
- Outlet types: 7 × 6 NEMA 5-20R & 1 NEMA L5-30R, Switchable
- Communication ports: USB, Serial, SNMP, EPO
- Management software: PowerPanel® Business Edition
- Remote management: Yes, RMCARD205 Optional
- Warranty: 3 year
Quick Specifications
- Product Series
- Smart App Online UPS
- Product Model
- OL3KRTHD
- Product Type
- Dual Conversion Online UPS
- Plug/Connector Type
- NEMA L5-30P
- Receptacle Type
- NEMA 5-20R
- Receptacle Detail
- 6 x NEMA 5-20R
- Overload Protection
- Yes
- Cord Length
- 10 ft
