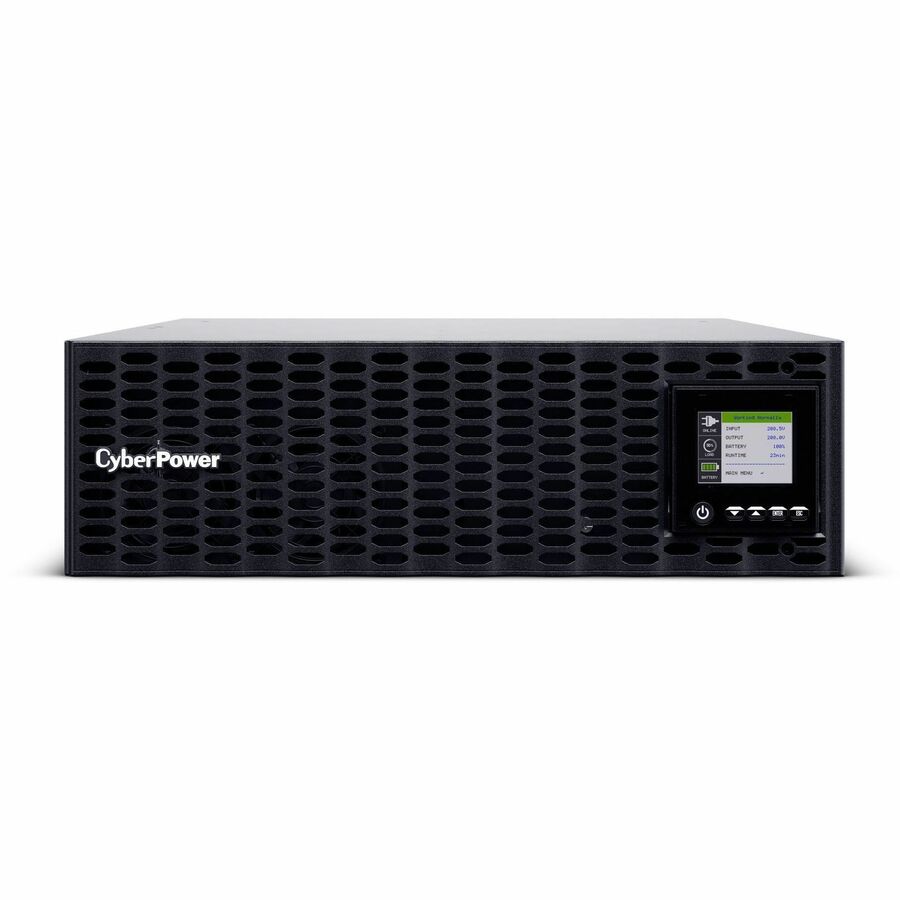

CyberPower OL5KRTHDL Smart App Online UPS Systems
5000VA/5000W, 200 - 240 VAC, Hardwire Terminal (NEMA L6-30P power cord included), 3U, Rack / Tower, Sine Wave, 4 Outlets, LCD, PowerPanel® Business, $300000 CEG, 3YR Warranty
About This Product
Overview
The CyberPower Smart App Online OL5KRTHDL high-density design offers more power and longer run times. The OL5KRTHDL features double-conversion topology for seamless power protection and a pre-installed RMCARD205.
For monitoring, this UPS offers a new state-of-the-art, multi-function, color matrix LCD screen that is simple to set up and easy to use. The color-coded alerts provide clear status of the UPS and the screen orientation rotates automatically when placed into a tower configuration.
The OL5KRTHDL ensures maximum efficiency and capacity output with a Power Factor rating (PF) of 1. The energy-saving GreenPower UPS™ ECO Mode enables up to 96% efficiency while reducing power consumption and thermal dissipation. The variable 7-speed fan provides automatic thermal management, based on power load, to reduce noise.
The optional BP144VL2U01 Extended Battery Module (EBM) expands runtime and up to ten EBMs can be connected in a daisy-chain to the UPS for more backup power. Plus, it's all backed by a three-year warranty (including batteries) and a $300,000 Connected Equipment Guarantee.
- Capacity: 5000 VA / 5000 W
- High Density: 3U Size
- Power Factor (PF): 1
- Topology: Double-Conversion
- Waveform: Sine Wave
- Output: 200, 208, 220, 230, 240 VAC User Configurable ±2%
- Runtime (half/full): 14.3 minutes / 4.9 minutes
- Plug type & cord: NEMA L6-30P Power Cord with Hardwire Option
- Outlet types: 2 x NEMA L6-20R, 2 x NEMA L6-30R
- Communication ports: USB, Serial, SNMP, EPO
- Management software: PowerPanel® Business Edition
- Energy Saving: ECO Mode Efficiency >96%
- Remote management: Yes, RMCARD205 pre-installed
- LCD Control Panel: Multi-Function Color
- Battery Equalization Technology:
- Yes
- Smart Battery Management: Yes
- Fast Charge Technology: Yes
- Warranty: 3 year
- Connected Equipment Guarantee: $300,000
Quick Specifications
- Product Line
- Smart App Online
- Product Model
- OL5KRTHDL
- Product Type
- Double Conversion Online UPS
- Plug/Connector Type
- NEMA L6-30P Hardwired
- Receptacle Type
- NEMA L6-20R NEMA L6-30R
- Receptacle Detail
- 2 x NEMA L6-20R 2 x NEMA L6-30R
- Cord Length
- 10 ft
- Transfer Time
- 0 ns
