CyberPower PDU20BHVIEC8R 200 - 230 VAC 20A Basic PDU

Manufacturer: CyberPower Systems, Inc
Mfr. Part: PDU20BHVIEC8R

8 Outlets, 10 ft, IEC-320 C20, Horizontal, 1U, Lifetime Warranty

CyberPower PDU20BHVIEC8R 200 - 230 VAC 20A Basic PDU

About This Product

Overview

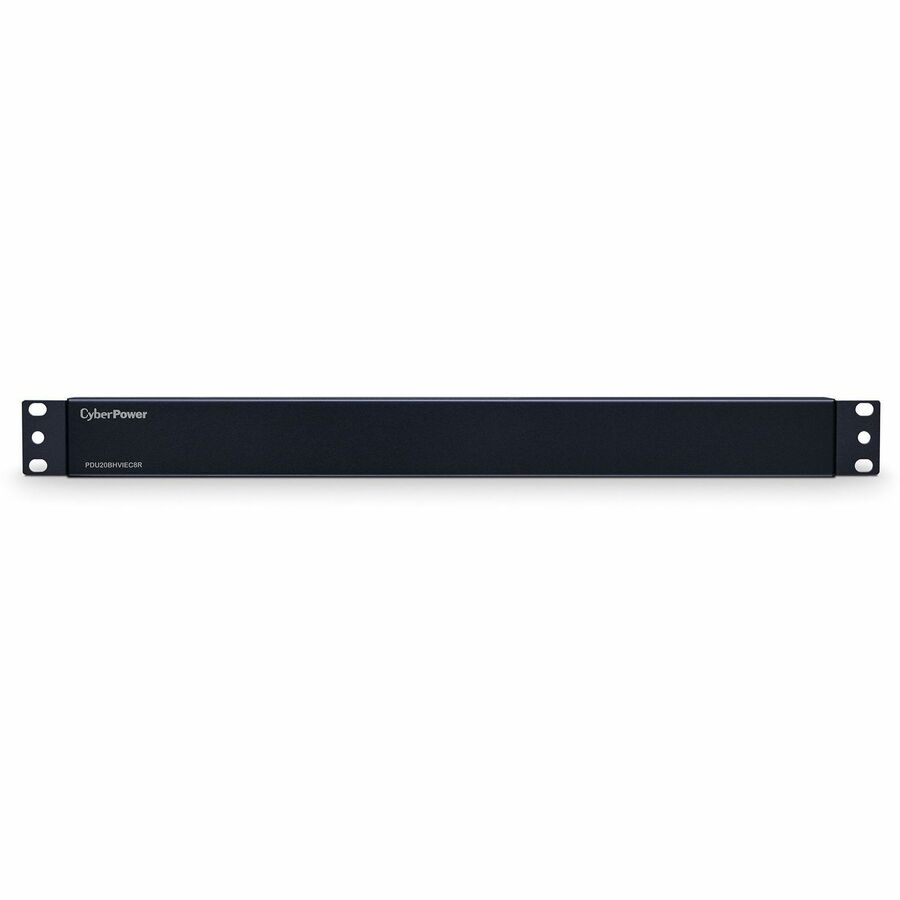

The CyberPower PDU20BHVIEC8R, an 8-outlet (rear) rackmount basic power distribution unit (PDU), provides 208V/230V 20A output. It distributes power to 8 IEC-320 C13 receptacles from a single IEC-320 C20 plug with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, the PDU20BHVIEC8R has a rugged, industrial-grade metal housing and a 10-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray, and is ETL/RoHS certified. A limited lifetime warranty covers defects in materials and workmanship in the product under normal use and conditions.

  • Phase: Single
  • Amps: 20A (Derated to 16A)
  • Volts: 208 - 230 V
  • Frequency: 50Hz/60Hz
  • Plug type: IEC-320 C20
  • Outlets: 8 IEC-320 C13
  • Size: 1U Rackmount
  • Dimensions (in.): 17.5W x 1.75H x 1.5D
  • Cord length (ft.): 10
  • Warranty: Limited lifetime

Quick Specifications

Product Series
Basic PDU
Product Model
PDU20BHVIEC8R
Product Type
PDU
PDU Type
Basic
Plug/Connector Type
IEC 60320 C20
Receptacle Type
IEC 60320 C13
Receptacle Detail
8 x IEC 60320 C13
Protection Type
Overload Protection
