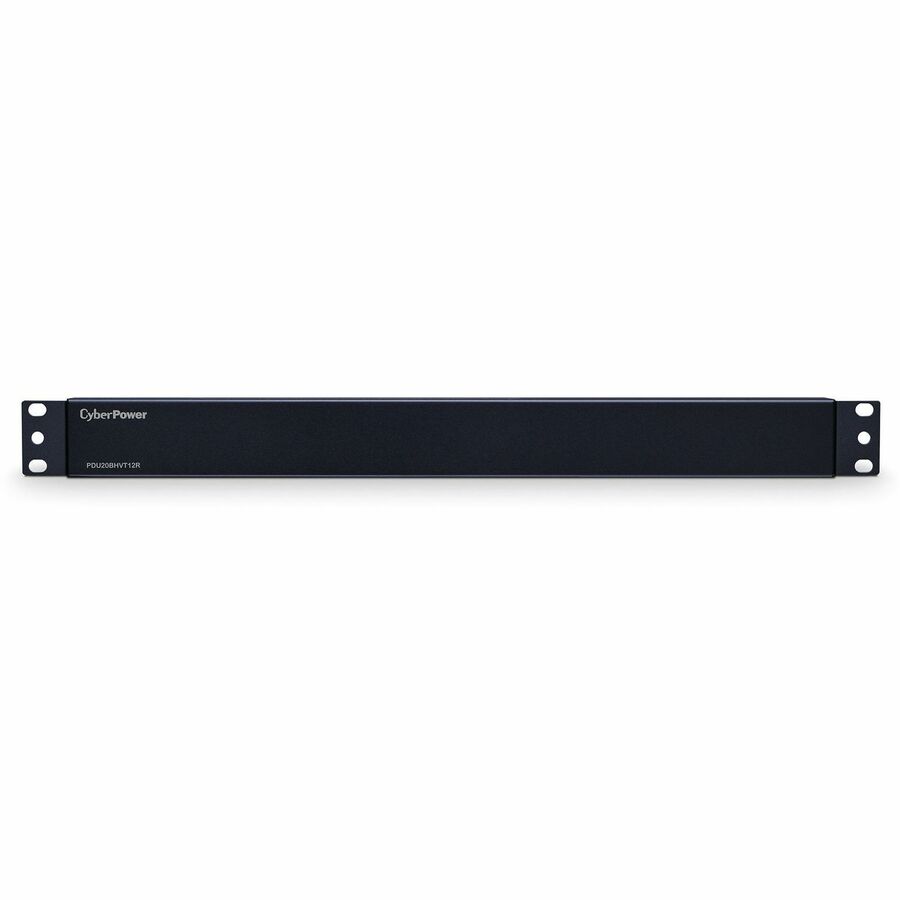

CyberPower PDU20BHVT12R 200 - 230 VAC 20A Basic PDU

Manufacturer: CyberPower Systems, Inc
Mfr. Part: PDU20BHVT12R

12 Outlets, 10 ft, NEMA L6-20P, Horizontal, 1U, 3YR Warranty

CyberPower PDU20BHVT12R 200 - 230 VAC 20A Basic PDU

About This Product

Overview

The CyberPower PDU20BHVT12R, a 12-outlet (rear) rackmount basic power distribution unit (PDU), provides 208V/230V 20A output. It distributes power to 12 IEC-320 C13 receptacles from a single NEMA L6-20P twist lock plug with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, the PDU20BHVT12R has rugged, industrial-grade metal housing and a 10-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray, and is ETL/RoHS certified. A limited lifetime warranty covers defects in materials and workmanship in the product under normal use and conditions.

  • Phase: Single
  • Amps: 20A (Derated to 16A)
  • Volts: 208 - 230 V
  • Frequency: 50Hz/60Hz
  • Plug type: NEMA L6-20P
  • Outlets: 12 IEC-320 C13
  • Size: 1U Rackmount
  • Dimensions (in.): 17.5W x 1.75H x 1.5D
  • Cord length (ft.): 10
  • Warranty: Limited lifetime

Quick Specifications

Product Series
Basic PDU
Product Model
PDU20BHVT12R
Product Type
PDU
PDU Type
Basic
Phase
Single Phase
Plug/Connector Type
NEMA L6-20P
Receptacle Type
IEC 60320 C13
Receptacle Detail
12 x IEC 60320 C13
