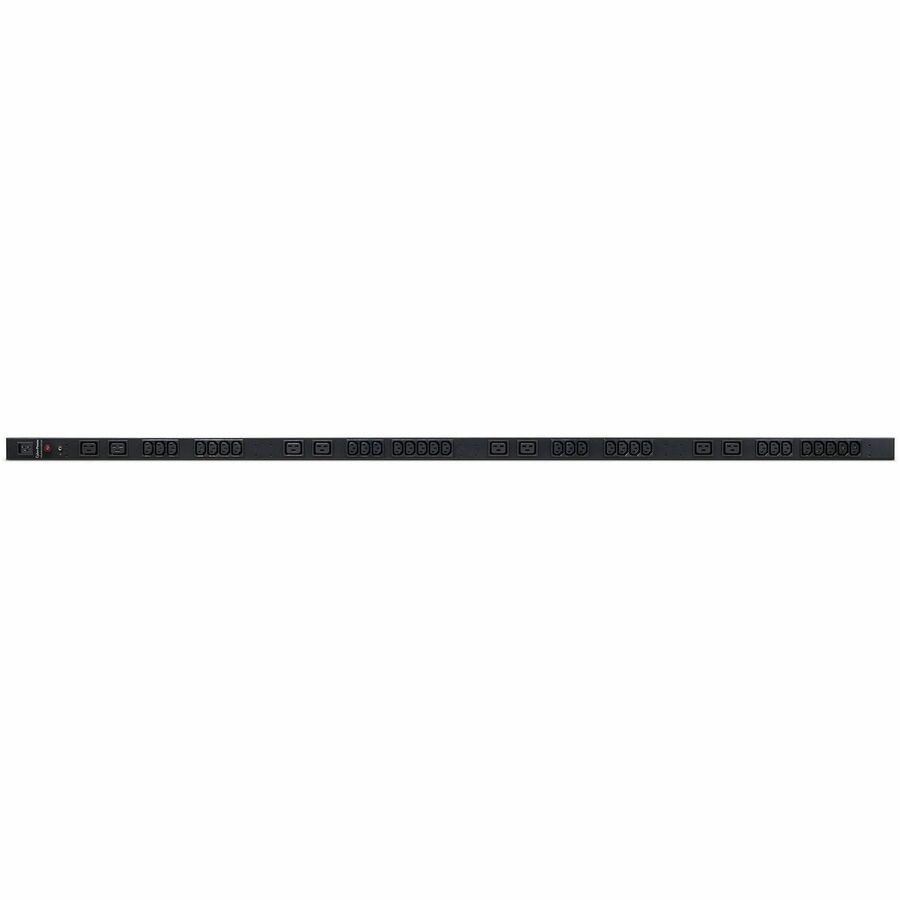

CyberPower PDU20BVHVIEC38F 200 - 230 VAC 20A Basic PDU
38 Outlets, 10 ft, IEC-320 C20, Vertical, 0U, Lifetime Warranty
About This Product
Overview
The CyberPower PDU20BVHVIEC38F, a 38-outlet (front) 0U vertical rackmount basic power distribution unit (PDU), provides 200/230V 20A output. It distributes power to 30 IEC-320 C13, 8 IEC-320 C19 receptacles from a single IEC-320 C20 plug with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, the PDU20BVHVIEC38F has a rugged, industrial-grade metal housing and a 10-foot AC power cord. It supports vertical, horizontal, and wall mount installation. The PDU20BVHVIEC38F comes with a cord retention tray and is ETL/RoHS certified. A limited lifetime warranty covers defects in materials and workmanship in the product under normal use and conditions.
- Phase: Single
- Amps: 20A (Derated to 16A)
- Volts: 200 - 230 V
- Frequency: 50Hz/60Hz
- Plug type: IEC-320 C20
- Outlets: 30 IEC-320 C13, 8 IEC-320 C19
- Size: 0U Rackmount
- Dimensions (in.): 1.75W x 70H x 1.5D
- Cord length (ft.): 10
- Warranty: Limited lifetime
Quick Specifications
- Product Model
- PDU20BVHVIEC38F
- Product Type
- PDU
- PDU Type
- Basic
- Plug/Connector Type
- IEC 60320 C20
- Receptacle Type
- IEC 60320 C19
- Receptacle Detail
- 8 x IEC 60320 C19
- Protection Type
- Overload Protection
- Input Voltage
- 230 V AC
