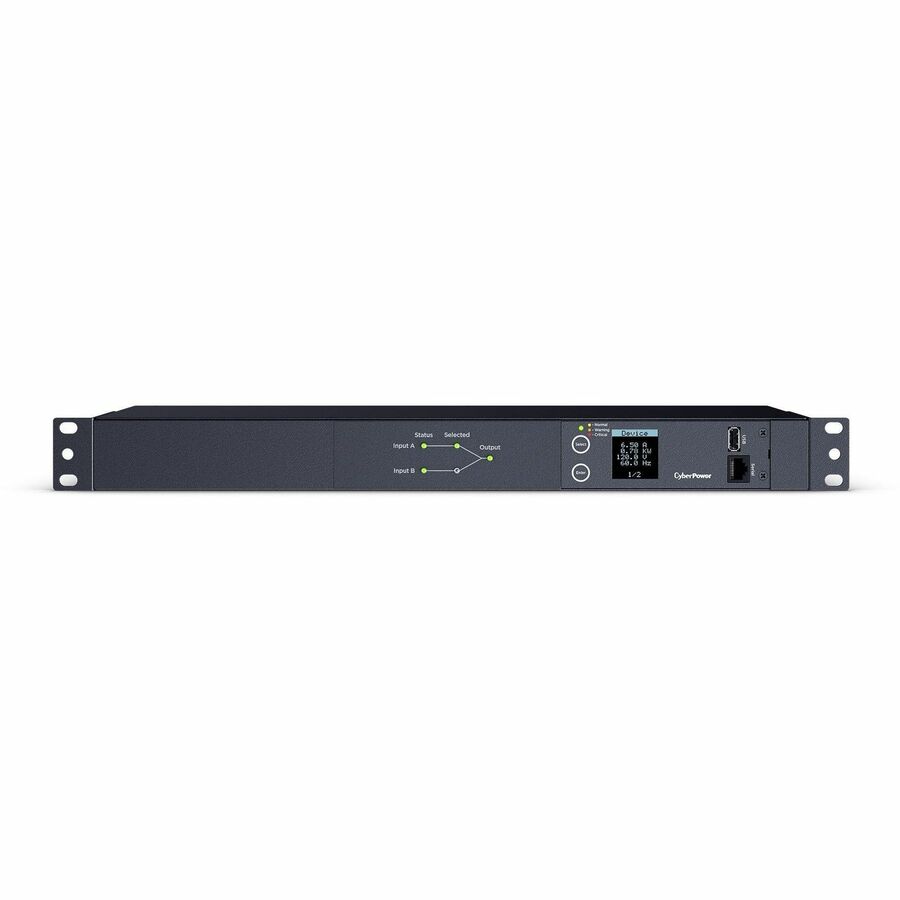

CyberPower PDU24001 Single Phase 100 - 120 VAC 15A Metered ATS PDU

Manufacturer: CyberPower Systems, Inc
Mfr. Part: PDU24001

10 Outlets, 10 ft, 2 x NEMA 5-15P, Horizontal, 1U, LCD, 3YR Warranty

CyberPower PDU24001 Single Phase 100 - 120 VAC 15A Metered ATS PDU

About This Product

Overview

Ensure continued operation of critical devices with the CyberPower PDU24001 Metered ATS PDU. Ideal for data centers and network closets, this unit provides power redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable.

The PDU24001 supports inputs between 100-120V and includes (10) NEMA 5-15R outlets. Dual NEMA 5-15P power cords are plugged into separate power sources (A and B), and information about each power source is provided via LED indicator lights on the front of the unit. Other features include an LCD with selectable background color, upgradeable firmware, and network-grade plugs and outlets. The CyberPower PDU24001 is protected by a three-year limited warranty.

More from the Manufacturer

  • Phase: Single
  • Amps: 15A (Derated to 12A)
  • Volts: 100-120V
  • Frequency: 50/60Hz
  • Plug type: 2 x NEMA 5-15P
  • Outlets: 10 x NEMA 5-15R
  • Size: 1U Rackmount
  • Warranty: 3 year

Quick Specifications

Product Series
Metered ATS PDU
Product Model
PDU24001
Product Type
PDU
PDU Type
Metered
Design
Modular
Phase
Single Phase
Plug/Connector Type
NEMA 5-15P
Plug/Connector Detail
2 x NEMA 5-15P
