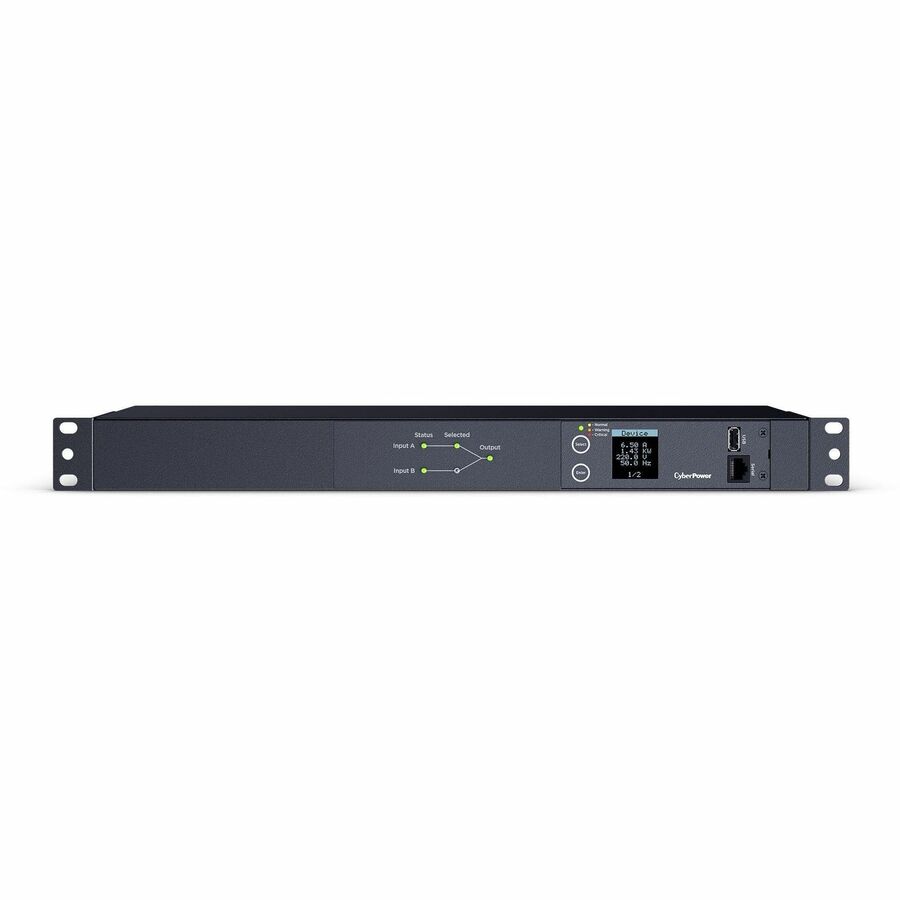

CyberPower PDU24004 Single Phase 200 - 240 VAC 15A Metered ATS PDU
12 Outlets, 10 ft, 2 x IEC-320 C14, Horizontal, 1U, LCD, 3YR Warranty
About This Product
Overview
Ensure continued operation of critical devices with the CyberPower PDU24004 Metered ATS PDU. Ideal for data centers and network closets, this unit provides power redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable.
The PDU24004 supports inputs between 200-240V and includes (12) IEC C13 outlets. Dual IEC C14 power cords are plugged into separate power sources (A and B), and information about each power source is provided via LED indicator lights on the front of the unit. Other features include an LCD with selectable background color, upgradeable firmware, and network-grade plugs and outlets. The CyberPower PDU24004 is protected by a three-year limited warranty.
- Phase: Single
- Amps: 15A (Derated to 12A)
- Volts: 200-240V
- Frequency: 50/60Hz
- Plug type: 2 x IEC-320 C14
- Outlets: 12 x IEC-320 C13
- Size: 1U Rackmount
- Warranty: 3 year
Quick Specifications
- Product Series
- Metered ATS PDU
- Product Model
- PDU24004
- Product Type
- PDU
- PDU Type
- Metered
- Design
- Modular
- Phase
- Single Phase
- Plug/Connector Type
- IEC 60320 C14
- Plug/Connector Detail
- 2 x IEC 60320 C14
