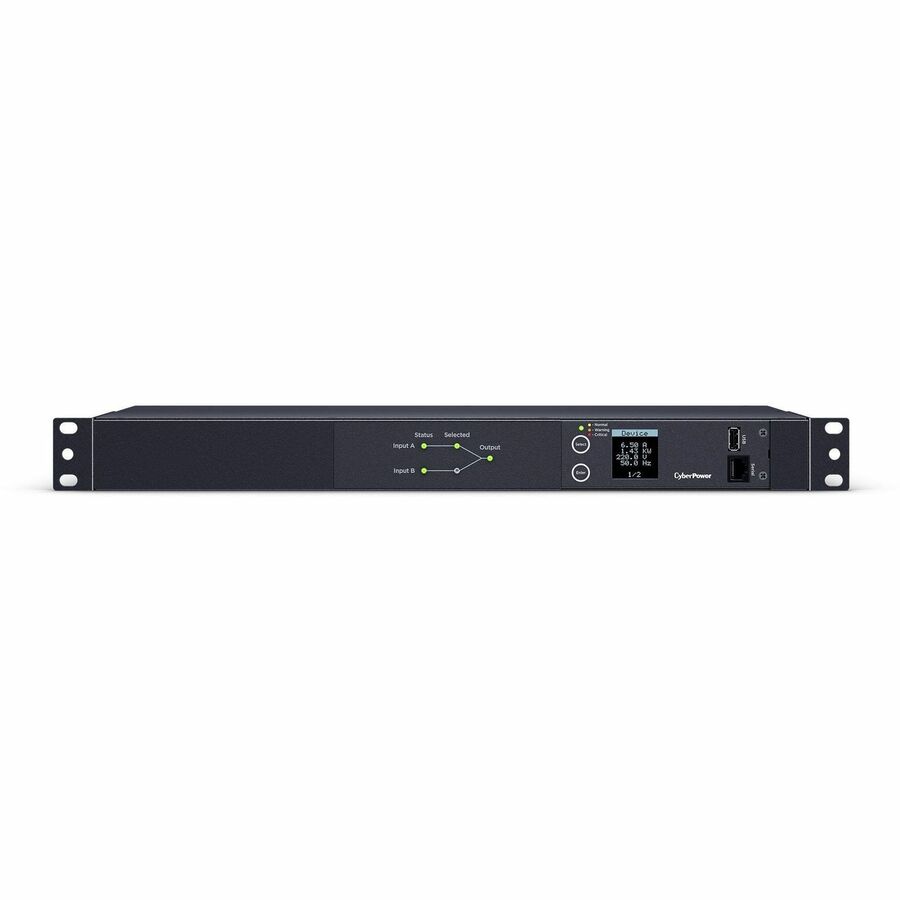

CyberPower PDU24006 Single Phase 240 - 200 VAC 20A Metered ATS PDU
10 Outlets, 10 ft, 2 x NEMA L6-20P, Horizontal, 1U, LCD, 3YR Warranty
About This Product
Overview
Ensure continued operation of critical devices with the CyberPower PDU24006 Metered ATS PDU. Ideal for data centers and network closets, this unit provides power redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable.
The PDU24006 supports inputs between 200-240V and includes (8) IEC C13 and (2) IEC C19 outlets. Dual NEMA L6-20P power cords are plugged into separate power sources (A and B), and information about each power source is provided via LED indicator lights on the front of the unit. Other features include an LCD with selectable background color, upgradeable firmware, and network-grade plugs and outlets. The CyberPower PDU24006 is protected by a three-year limited warranty.
- Phase: Single
- Amps: 20A (Derated to 16A)
- Volts: 200-240V
- Frequency: 50/60Hz
- Plug type: 2 x NEMA L6-20P
- Outlets: 8 x IEC-320 C13, 2 x IEC-320 C19
- Size: 1U Rackmount
- Warranty: 3 year
Quick Specifications
- Product Series
- Metered ATS PDU
- Product Model
- PDU24006
- Product Type
- PDU
- PDU Type
- Metered
- Phase
- Single Phase
- Plug/Connector Type
- NEMA L6-20P
- Plug/Connector Detail
- 2 x NEMA L6-20P
- Receptacle Type
- IEC 60320 C13
