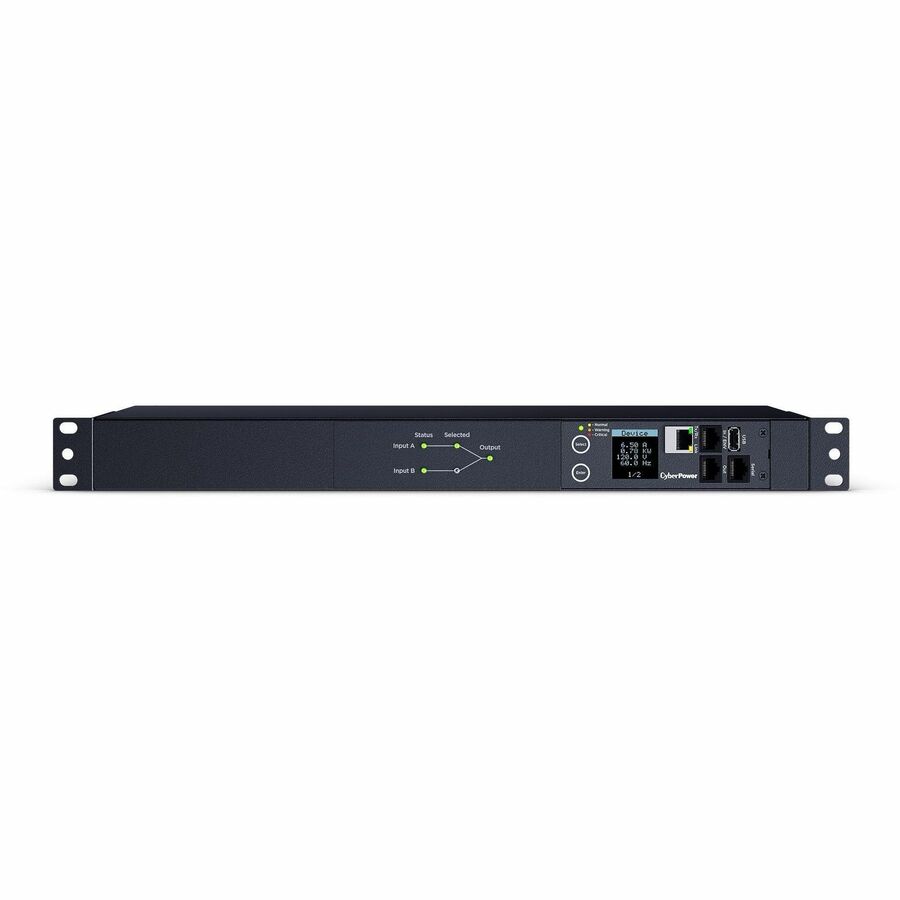

CyberPower PDU44002 Single Phase 100 - 120 VAC 20A Switched ATS PDU

Manufacturer: CyberPower Systems, Inc
Mfr. Part: PDU44002

10 Outlets, 10 ft, 2 x NEMA L5-20P, Horizontal, 1U, SNMP, LCD, 3YR Warranty

CyberPower PDU44002 Single Phase 100 - 120 VAC 20A Switched ATS PDU

About This Product

Overview

Ensure continued operation of critical devices with the CyberPower PDU44002 Switched ATS PDU. Ideal for data centers and network closets, this unit provides power redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable. Additionally, this unit offers real time remote and local monitoring and outlet management.

The PDU44002 supports inputs between 100-120V and includes (10) NEMA 5-20R outlets. Dual NEMA L5-20P power cords (L5-20P to non-locking 5-20P adapters included) are plugged into separate power sources (A and B), and information about each power source is clearly displayed on the front panel LED indicator lights. Other features include an LCD with selectable background color, built-in web interface, and power event notifications. The CyberPower PDU44002 is protected by a three-year limited warranty.

More from the Manufacturer

  • Automated notifications: Email, SMS Text, and SNMP Trap
  • Phase: Single
  • Amps: 20A (Derated to 16A)
  • Volts: 100-120V
  • Frequency: 50/60Hz
  • Plug type: 2 x NEMA L5-20P (L5-20P to 5-20P adapter included)
  • Outlets: 10 x NEMA 5-20R
  • Size: 1U Rackmount
  • Warranty: 3 year

Quick Specifications

Product Series
Switched ATS PDU
Product Model
PDU44002
Product Type
PDU
PDU Type
Switched
Design
Modular
Phase
Single Phase
Plug/Connector Type
NEMA L5-20P
Plug/Connector Detail
2 x NEMA L5-20P
