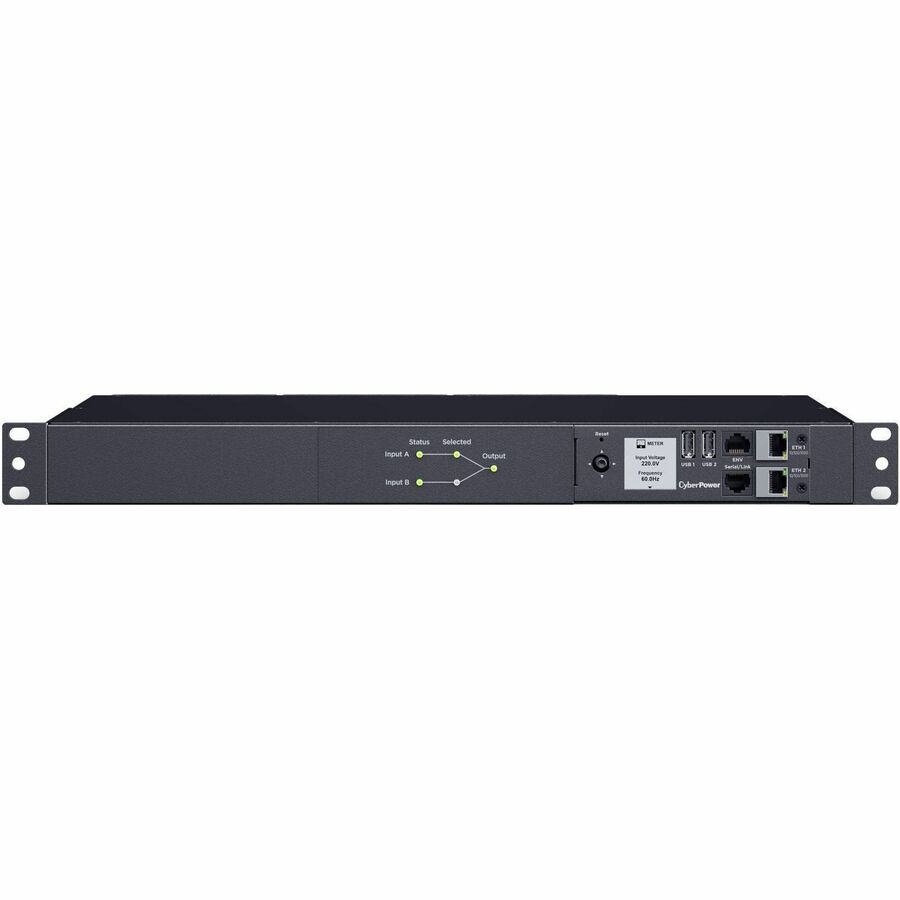

CyberPower PDU44005G Single Phase 200 - 240 VAC 20A Switched ATS
10 Outlets, 10 ft, 2 x IEC-320 C20, Horizontal, 1U, SNMP, LCD, 3YR Warranty

About This Product
Overview
Ensure continued operation of critical devices with the CyberPower PDU44005G Gigabit Switched ATS PDU. Ideal for data centers and network closets, this unit provides power redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable. Additionally, this unit offers real time remote and local monitoring and outlet management.
The PDU44005G supports inputs between 200-240V and includes (8) IEC C13 and (2) IEC C19 outlets. Dual IEC C20 power cords are plugged into separate power sources (A and B), and information about each power source is clearly displayed on the front panel LED indicator lights. Other features include an LCD with selectable background color, built-in web interface, and power event notifications. The CyberPower PDU44005G is protected by a three-year limited warranty.
- Gigabit Switched ATS PDU:
- Dual Network Gigabit 10/100/1000 Ethernet Ports, SNMP, and Switchable Outlets
- Automated notifications:
- Email, SMS Text, and SNMP Trap
- Phase:
- Single
- Amps:
- 20A (Derated to 16A)
- Volts:
- 200-240V
- Frequency:
- 50/60Hz
- Plug type:
- 2 x IEC-320 C20
- Outlets:
- 8 x IEC-320 C13, 2 x IEC-320 C19
- Size:
- 1U Rackmount
- Warranty:
- 3 year
Quick Specifications
- Product Model
- PDU44005G
- Product Type
- PDU
- PDU Type
- Switched Auto Transfer Switch
- Phase
- Single Phase
- Plug/Connector Type
- IEC 60320 C20
- Plug/Connector Detail
- 2 x IEC 60320 C20
- Receptacle Type
- IEC 60320 C13
- Receptacle Detail
- 8 x IEC 60320 C13
