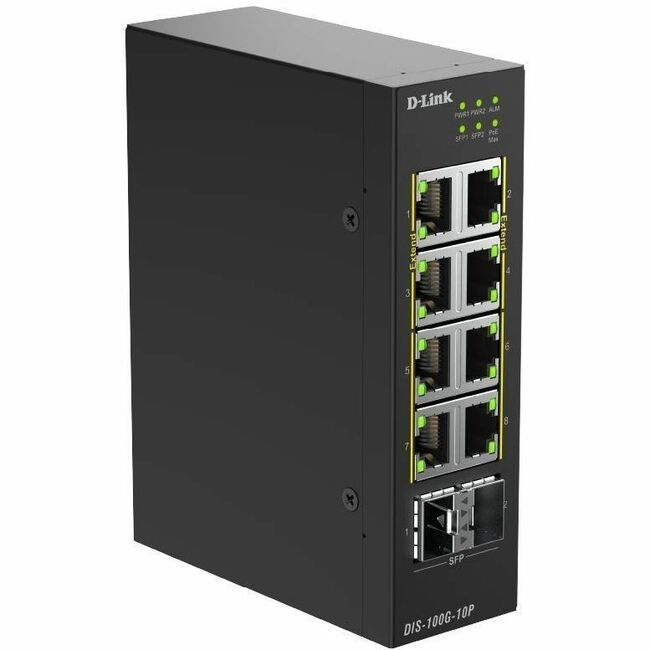

D-Link 10-Port Gigabit Industrial Unmanaged PoE Switch
8 Ports - Gigabit Ethernet - 2 Layer Supported - 2 SFP Slots - 244.86 W Power Consumption - 240 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - DIN Rail Mountable, Compact
About This Product
Overview
The DIS-100G-10P 10-Port Gigabit Industrial Unmanaged PoE Switch features a robust design making it ideal for deployment in industrial and outdoor cabinet surveillance settings and capable of withstanding the harshest environments. In addition, the DIS-100G-10P is plug-and-play, allowing for effortless and swift deployment.
Durable, Reliable, and Efficient
The DIS-100G-10P is housed in a highly resistant IP30-rated metal casing to protect the switch from harsh environmental conditions. High electromagnetic susceptibility (EMS) protects the DIS-100G-10P from undesirable effects when operating in environments with strong electromagnetic interference. Meanwhile, the fanless design extends the life of the DIS-100G-10P while also enabling them to operate in a wide temperature range from -40 °C up to 75 °C. With DIN rail mounting capability, the DIS-100G-10P can fit seamlessly into your industrial equipment infrastructure. In addition, the DIS-100G-10P supports dual power input, which allows for a redundant power supply configuration to make sure the switch continues to operate in the event of a primary power supply failure.
Power Over Ethernet
The DIS-100G-10P is compliant with both IEEE 802.3af and IEEE 802.3at PoE standards and delivers up to 30 watts of power per port along with data on standard Ethernet cabling. The switches can be used to power any IEEE 802.3af/at compliant PoE PD devices, which eliminates the need for additional wiring.
Green Ethernet Technology
The DIS-100G-10P features green technology; IEEE 802.3az Energy-Efficient Ethernet (EEE). Energy-Efficient Ethernet reduces the power consumption of the switch when network utilisation is low, effectively lowering the cost of ownership during periods of inactivity.
- Ethernet Switch supports increased network bandwidth availability through data switching
- Expand network capacity using 8 networking ports to accommodate additional devices within an existing wired setup
- Gigabit Ethernet supports higher uplink data rates compared to standard Ethernet server connections
- Layer 2 switching supports defined functions including IGMP snooping, port mirroring, and spanning tree operation
- DIN Rail Mountable form factor supports product placement based on physical design requirements
- Unmanaged design enables immediate wired network expansion through fixed configuration without manual intervention
- Twisted pair cable support enables cost?efficient network connections for data transmission across distances
- DC power source provides required electrical input for normal device functionality
- Allows connection between separate networks to support infrastructure flexibility and structured traffic distribution
Quick Specifications
- Product Model
- DIS-100G-10P
- Product Type
- Ethernet Switch
- Features
- Plug and Play IP30 Fanless Energy Efficient Surge Protection
- Total Number of Network Ports
- 8
- Network (RJ-45)
- Yes
- Uplink Port
- Yes
- Port/Expansion Slot Details
- 8 x Gigabit Ethernet PoE Network Port 2 x Gigabit Ethernet Expansion Slot
- Media Type Supported
- Twisted Pair Optical Fiber
