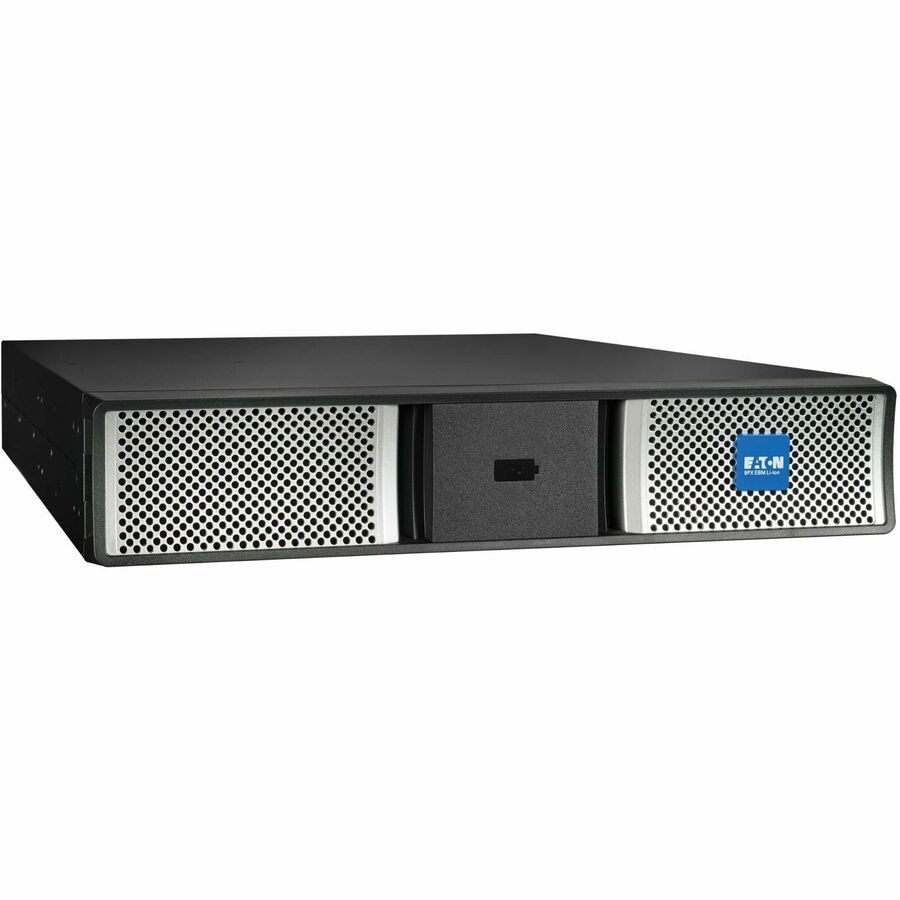

Eaton 9PX UPS Battery Pack
12000 mAh - 192 V DC - Lithium Iron Phosphate (LiFePO4) - Hot Swappable
About This Product
Overview
Backup Battery Module Gives Your Compatible Eaton UPS System Extended Runtime
The lithium-ion 9PXEBM192RTG2-L offers extended battery runtime when used in conjunction with Eaton's 9PX6KG2-L, 9PX8KG2-L or 9PX11KG2-L UPS system. It can also be daisy-chained for a maximum of 10 matching battery packs to deliver even longer extended-run operation. Heavy-gauge cabling with high-current DC connectors is included for safe, simple installation.
Supports 2U Rack or Tower Installation
This lithium-ion backup battery pack is smaller and lighter than VRLA modules. Its multi-use form factor supports mounting in 2U of space in EIA-standard 19-inch open frame racks or enclosures using the included 4-post rail kit and mounting brackets. Tower stands from a compatible UPS support optional upright configuration of the battery pack. For 2-post rack mounting, an optional RK2PC mounting kit (sold separately) is required for each UPS, EBM, PPDM or transformer.
- Connects to expandable 6kVA-11kVA 9PX G2 UPS system for extended runtime
- Improved lithium-ion batteries have lifespan up to 10 years - set it and forget it
- Daisy-chain connector supports additional battery packs for even longer runtime
- Includes heavy-gauge cabling with high-current 192V DC connectors
- Supports 2U rack mounting or upright tower installation
- 5-year limited warranty
Quick Specifications
- Product Type
- UPS Battery Pack
- Battery Chemistry
- Lithium Iron Phosphate (LiFePO4)
- Hot Swappable
- Yes
- Battery Capacity
- 12000 mAh
- Battery Energy
- 2304 VAh
- Output Voltage
- 192 V DC
- Battery Size
- Proprietary Battery Size
- Minimum Operating Temperature
- 32°F (0°C)
