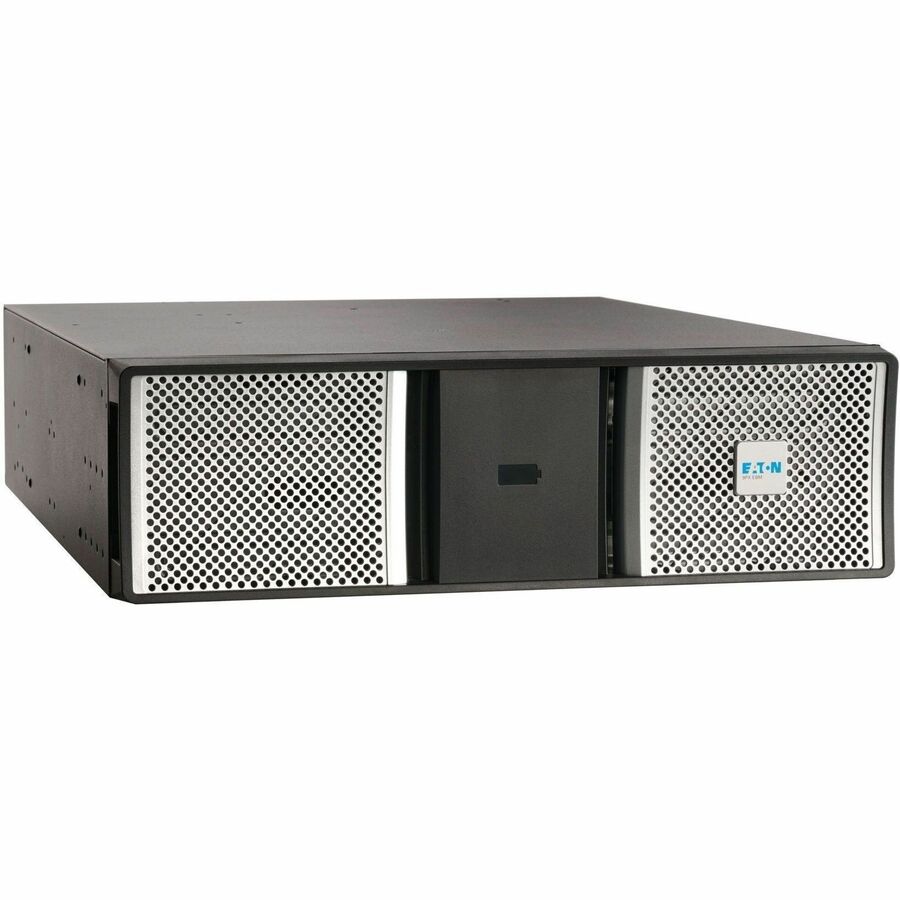

Eaton 240V Extended Battery Module (EBM) for Select Eaton 9PX G2 UPS Systems, 3U Rack/Tower
240 V DC - Lead Acid - Valve-regulated/User Replaceable - Hot Swappable
About This Product
Overview
Backup Battery Module Gives Your Compatible Eaton UPS System Extended Runtime
The 9PXEBM240RTG2 offers extended battery runtime when used in conjunction with Eaton's 9PX8KG2, 9PX8KTF5G2, 9PX11KG2, 9PX11KTF11G2, 9PX11KTF11MG2, and 9PX11KTF5G2 9PX UPS systems. It can also be daisy-chained for a maximum of 12 auto-detected battery packs to deliver even longer extended-run operation. Heavy-gauge cabling with high-current DC connectors is included for safe, simple installation.
Supports 3U Rack or Tower Installation
This backup battery pack's multi-use form factor supports mounting in 3U of space in an EIA-standard 19-inch rack using the included 4-post rail kit. You can also adapt it for tower installation using the included support stands. For installation in 2-post racks, one RK2PC mounting kit (sold separately) is required for each UPS, EBM, PPDM or transformer.
- Solution for a battery that is about to expire, so you can replace it whenever needed
- Valve-regulated/User Replaceable battery characteristics provide optimal charging results with added usability
- Once installed, it requires low maintenance
- 240 V DC battery can be used as a convenient spare, giving you peace of mind
Quick Specifications
- Product Model
- 9PXEBM240RTG2
- Product Type
- Battery Unit
- Battery Characteristics
- Valve-regulated/User Replaceable
- Battery Chemistry
- Lead Acid
- Hot Swappable
- Yes
- Output Voltage
- 240 V DC
- Battery Size
- Proprietary Battery Size
- Minimum Operating Temperature
- 32°F (0°C)
