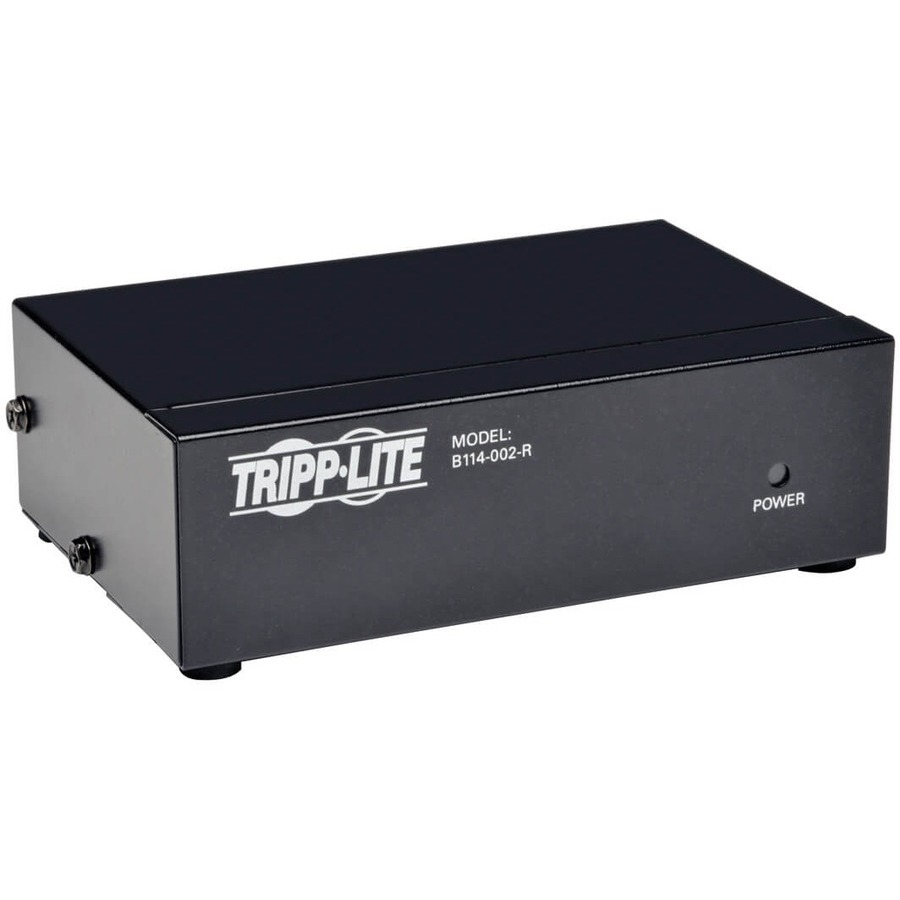

Eaton Tripp Lite Series 2-Port VGA/SVGA Video Splitter with Signal Booster, High Resolution Video, 350MHz, (HD15 M/2xF)
Manufacturer: Eaton Corporation
Mfr. Part: B114-002-R
2048 x 1536 - QXGA - 1 x 2 - Computer2 x VGA Out
About This Product
Overview
Two-port, VGA/SVGA video splitter with signal booster technology provides bandwidth support at 350MHz to let you simultaneously display video on two monitors at once. A built-in booster allows a video signal (up to 2048 x 1536 at 60Hz) to be transmitted up to 210' from the source. Two standard HD15 female ports are used to connect the monitors while the third HD15 male port is used to connect your CPU. The splitter can be located up to 25' from the connected computer and up to 185' from the connected monitors. The number of connected monitors can be expanded by cascading up to three levels of additional splitters together. Video splitter is designed for use with computers with a HD15 port.
- Simultaneously displays video on 2 VGA/SVGA monitors
- A built-in booster allows a video signal (up to 2048 x 1536 @ 60Hz) to be transmitted up to 210 ft. from the source
- The splitter can be located up to 25 ft. from the connected computer, and up to 185 ft. from the connected monitors
- 350Mhz bandwidth support
Quick Specifications
- Product Model
- B114-002-R
- Packaged Quantity
- 1
- Product Type
- Video Switchbox
- Number of Input Devices Supported
- 1
- Device Supported
- Computer
- Number of Displays Supported
- 2
- Graphics Modes
- QXGA
- Maximum Video Resolution
- 2048 x 1536
