Tripp Lite by Eaton HDMI over Cat5/6 Extender Box-Style Remote Receiver for Video/Audio Up to 150 ft. (45 m) TAA
1 Input Device - 1 Output Device - 200 ft Range - 1 x Network (RJ-45) - 1 x HDMI Out - Twisted Pair - TAA Compliant
About This Product
Overview

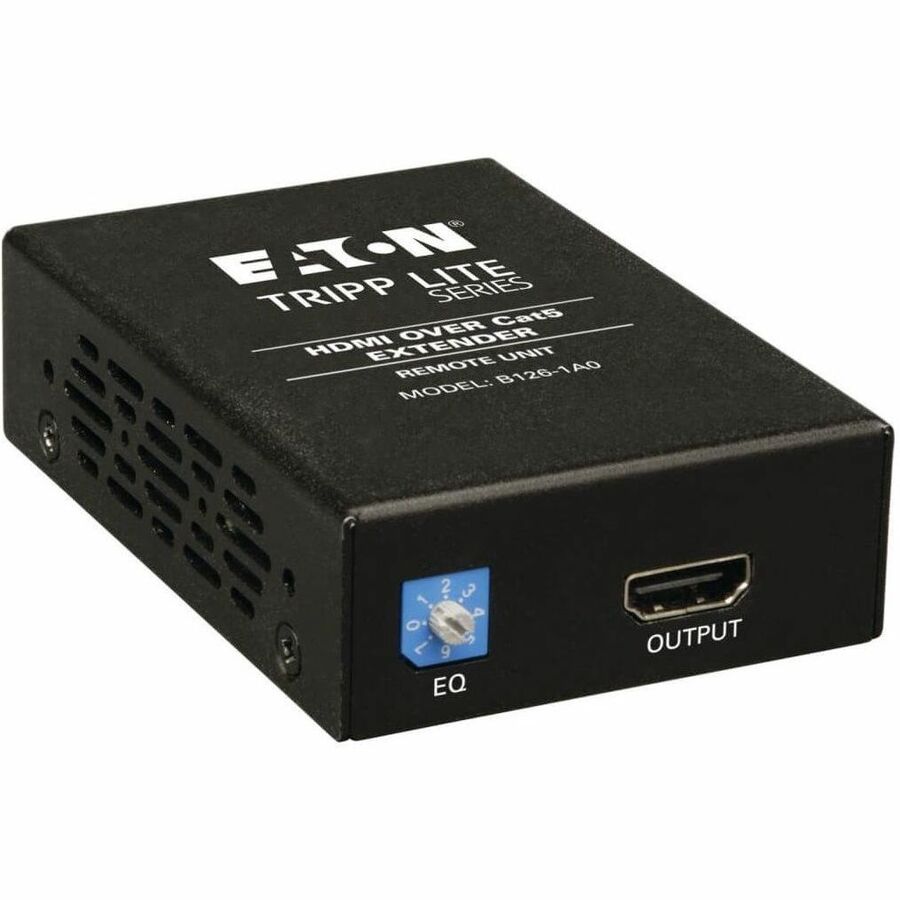

The B126-1A0 is a receiver unit that is used with the B126-002 and B126-004 transmitter units. It extends a 1080p (60Hz) signal to a monitor up to 150 ft. away using Cat5e/6 cable. To achieve maximum distance and resolution, use 24Awg Solid Wire Cat5e/6 cable. (Tripp Lite's N202-Series) It features a built-in Equalization control for adjustment of the video image. Supports 24-bit True Color (8-bits per channel), HDCP, 3D, and both stereo audio and 7.1 channel surround sound audio (7.1 channel surround sound signal will be Multi-Channel or PCM). Installation is simple. Connect the transmitter unit to an HDMI source using a Tripp Lite P568-Series HDMI cable (not included). Connect the receiver unit to a display using a Tripp Lite P568-Series HDMI cable (not included). Finally, connect the receiver to the RJ45 port on the transmitter using a single Cat5e/6 cable. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
- Works in tandem with B126-002 or B126-004 transmitter unit
- Supports high-definition video resolutions up to 1080p (60 Hz)
- Supports stereo and 7.1-channel surround sound audio
- Works with all operating systems and HDMI video sources
- Plug and play-no software or drivers to install
Quick Specifications
- Product Model
- B126-1A0
- Product Type
- Video Extender Receiver
- Connectivity Technology
- Wired
- Number of Input Devices Supported
- 1
- Number of Output Devices Supported
- 1
- Maximum Operating Distance
- 200 ft
- Network (RJ-45)
- Yes
- HDMI Out
- Yes
