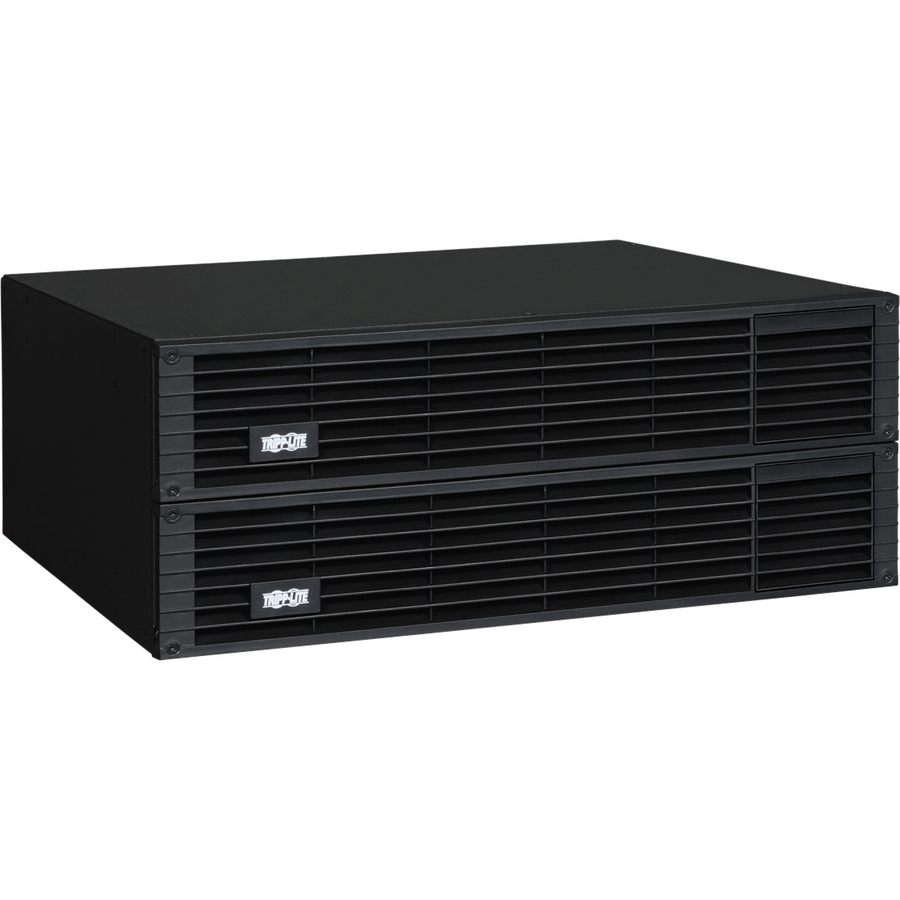

Eaton Tripp Lite Series External 48V 4U Battery Pack for select UPS Systems (BP48V48RT4U)
48V DC
About This Product
Overview
BP48V48RT4U shallow-depth rackmount external battery pack offers extended battery runtime when used in conjunction with compatible Tripp Lite UPS systems. Supports configuration in rackmount applications using only 4 rack spaces (4U). Includes heavy gauge cabling with high current DC connector for simple installation. Additional output connector allows multiple BP48V48RT4U battery packs to be daisy-chained to the UPS for even longer extended run operation. Includes hardware for 2-post rackmount installation and supports optional 4-post rackmount installation with addition of UPSRMRII accessory kit. Ideal for installation in wiring closet applications.COMPATIBLE UPS SYSTEMS - SMART1500CRMXL, SMART2200CRMXL, SMART3000CRMXL, and other Tripp Lite UPS systems that specify the use of this battery pack. (Note: BP48V48RT4U, SMART2200CRMXL and SMART3000CRMXL include hardware for 2-post rackmount installation; most other rackmount UPS systems and battery packs include hardware for 4-post rackmount installation.)
- Extends the runtime of Tripp Lite 48V DC Tripp Lite UPS Systems
- 4U reduced-depth configuration with included 2 post mounting accessories is ideal for use with Tripp Lite SMART2200CRMXL and SMART3000CRMXL UPS systems
- Included daisychain connector supports the addition of multiple compatible external battery packs
- Supports 4U rackmount installation; 2 post installation accessories included
- Options for 4 post rackmount and tower installation available
Quick Specifications
- Product Model
- BP48V48RT4U
- Product Type
- External Battery Pack
- Minimum Battery Life
- 4 Year
- Maximum Battery Life
- 6 Year
- Output Voltage
- 48 V DC
- Height
- 6.9"
- Width
- 17.3"
- Depth
- 16.7"
