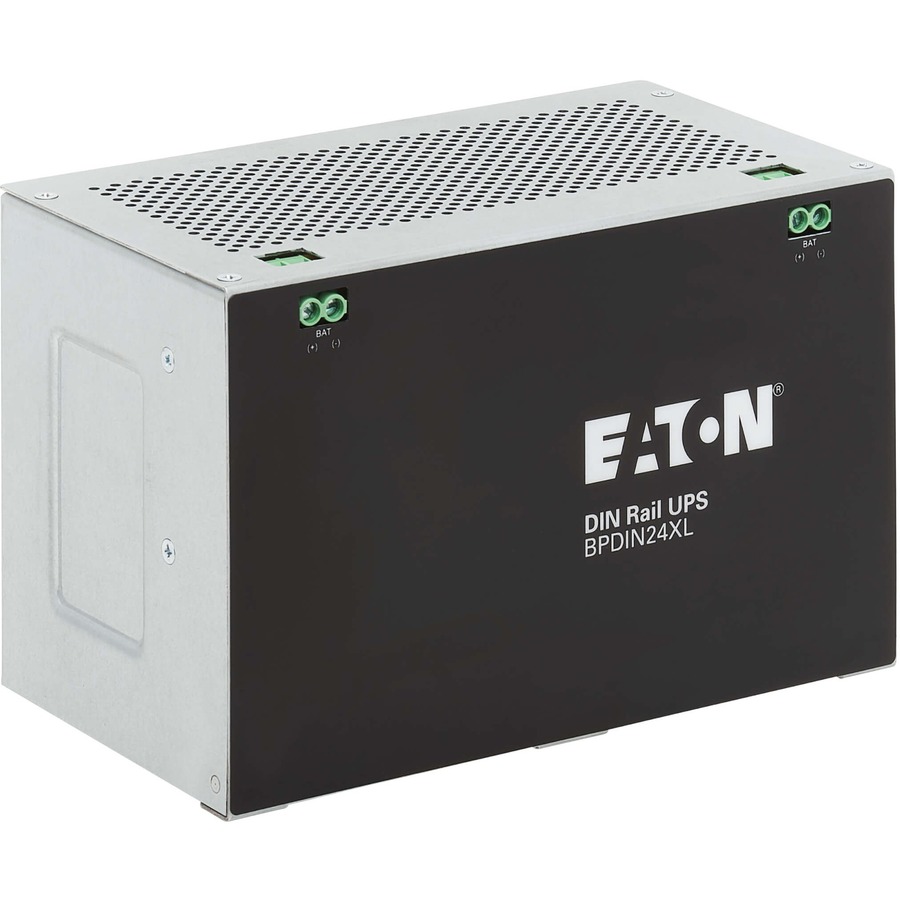

Tripp Lite by Eaton 24V DC DIN Rail Extended Battery Module (EBM) for Select DC Industrial UPS Systems
Manufacturer: Eaton Corporation
Mfr. Part: BPDIN24XL
24 V DC - Lead Acid - Valve-regulated
About This Product
Overview
Provides extended runtime for compatible UPS systems in industrial, process, automation and machine control enclosure applications.
Features | Backup Battery Module Gives Your Compatible UPS System Extended Runtime
The BPDIN24XL offers extended battery runtime when used in conjunction with Eaton's DIN24240DC and DIN24480DC UPS systems. It can also be daisy-chained for a maximum of four matching EBMs to deliver
Features | Backup Battery Module Gives Your Compatible UPS System Extended Runtime
The BPDIN24XL offers extended battery runtime when used in conjunction with Eaton's DIN24240DC and DIN24480DC UPS systems. It can also be daisy-chained for a maximum of four matching EBMs to deliver
Supports Easy DIN Rail Installation
This extended battery module supports mounting in industrial, process, automation and machine control enclosure applications using the integrated 35 mm DIN rail mounting clamp.
- Compatible with expandable DIN24240DC and DIN24480DC UPS systems
- Daisy-chain connector allows addition of up to 4 total EBMs to extend backup runtime
- Built-in clamp mounts easily to a "top hat" 35mm DIN rail with no mounting screws or brackets required
Quick Specifications
- Product Model
- BPDIN24XL
- Product Type
- Battery Unit
- Battery Characteristics
- Valve-regulated
- Battery Chemistry
- Lead Acid
- Output Voltage
- 24 V DC
- Height
- 4.9"
- Width
- 8.3"
- Depth
- 4.6"
