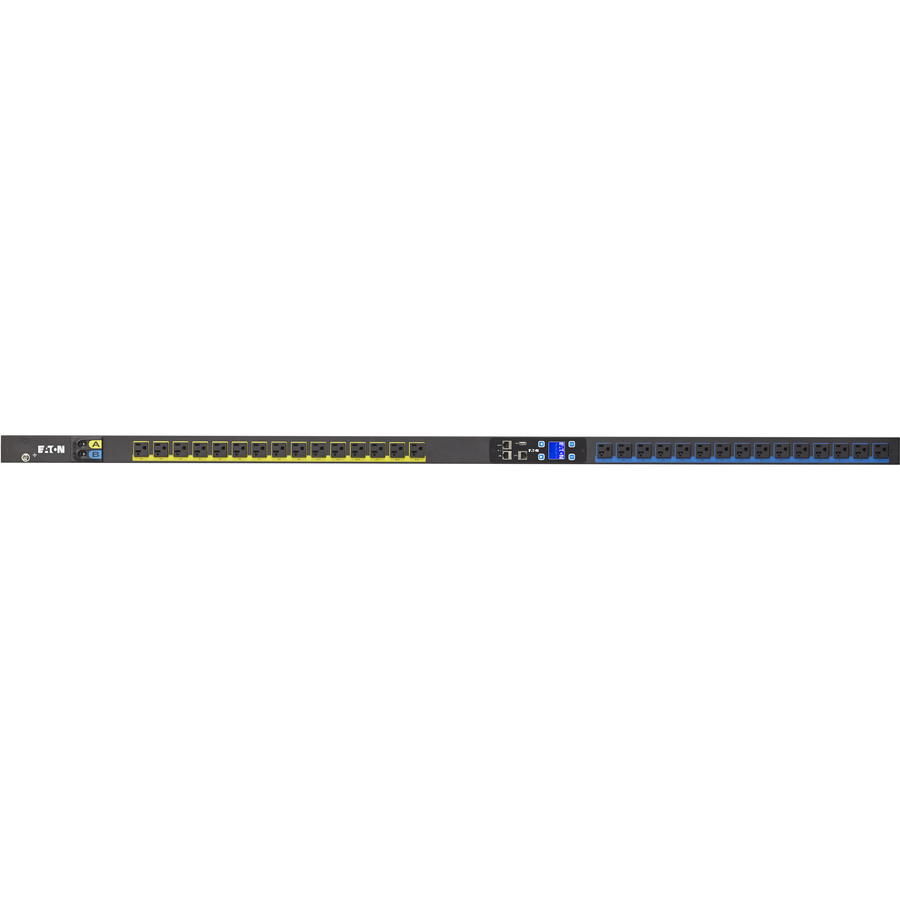

Eaton Metered Input Rack PDU 2.88 kW max 120V 24A 0U Vert. Single-Phase PDU
Manufacturer: Eaton Corporation
Mfr. Part: EMI102-10
NEMA L5-30P - 24 x NEMA 5-20R - 120 V AC - 2880 W - Network (RJ-45) - 38U - Rack-mountable
About This Product
Overview
Eaton G3 Metered Input ePDUs provide a best-in-class design featureing billing grade accuracy monitoring of input and branch circuits on a local LCD pixel display or over a network connection. The high accuracy meter will measure current, voltage, power and energy for load balancing, capacity planning, efficiency monitoring and energy usage reporting. Designed for IT and data center applications means high reliability and a robust design made for high operating temperatures found in containment or networking closets.
- Advanced LCD pixel display for local display of current, voltage, power, energy and menu setup of parameters such as IP address or display rotation
- High operating temperature (140F / 60C) for containment or hot network closet environments
- Hot-swap meter for servicability of without removing power to the rack
- +/- 1% billing grade accuracy for high accuracy reporting of energy usage
- Daisy chain of IP addresses allows four devices to share one network connection
- Color coded outlet sections simplify load balancing
- New ePDU G3 models feature ±1% billing grade accuracy, an advanced LCD pixel display, a hot-swap meter and the ability to daisy chain four ePDUs to share the same network connection and IP address
- High density units support up to 25 1U/2U servers or three blade server chassis
- Easy read digital ammeter reduces local monitoring time
- Clearly labeled circuits simplify load balancing
- Reading available via Ethernet connection over a network
- UL Listed (UL489) branch circuit breakers meet UL60950-1 Edition requirements
Quick Specifications
- Product Line
- ePDU
- Product Type
- PDU
- Plug/Connector Type
- NEMA L5-30P
- Receptacle Type
- NEMA 5-20R
- Receptacle Detail
- 24 x NEMA 5-20R
- Input Voltage
- 120 V AC
- Power Rating (Watt)
- 2880 W
- Input Current
- 24 A
