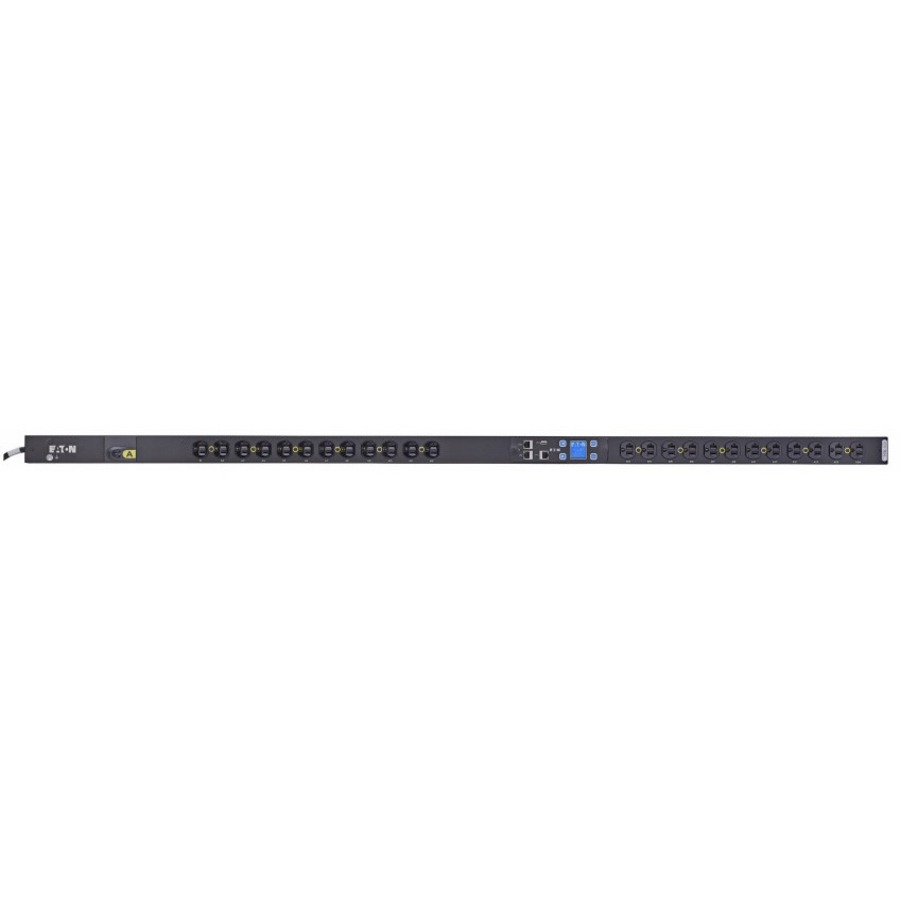

Eaton Metered Input rack PDU, 0U, L5-30P input, 2.88 kW max, 120V, 24A, 10 ft cord, Single-phase, Outlets: (24) 5-20R

Manufacturer: Eaton Corporation
Mfr. Part: EMI117-10

NEMA L5-30P - 2880 W - 36U - Rack-mountable

Eaton Metered Input rack PDU, 0U, L5-30P input, 2.88 kW max, 120V, 24A, 10 ft cord, Single-phase, Outlets: (24) 5-20R

About This Product

Overview

Eaton Metered Input ePDUs provide remote monitoring of the current draw of individual sections via network communication. This capability, combined with state-of-the-art software allows you to aggregate the information from many ePDUs in one location. A local display is also available for phase balancing and for easy start-up and provisioning of servers. New ePDU G3 Metered Input models feature best-in-class technologies, including ±1% billing grade accuracy, an advanced LCD pixel display, a hot-swap meter and the ability to daisy chain four ePDUs to share the same network connection and IP address.

  • New ePDU G3 models feature ±1% billing grade accuracy, an advanced LCD pixel display, a hot-swap meter and the ability to daisy chain four ePDUs to share the same network connection and IP address
  • High density units support up to 25 1U/2U servers or three blade server chassis
  • Easy read digital ammeter reduces local monitoring time
  • Clearly labeled circuits simplify load balancing
  • Reading available via Ethernet connection over a network
  • UL Listed (UL489) branch circuit breakers meet UL60950-1 Edition requirements

Quick Specifications

Product Line
ePDU
Product Series
Metered
Product Model
EMI117-10
Product Type
PDU
Plug/Connector Type
NEMA L5-30P
Power Rating (Watt)
2880 W
Input Current
24 A
Mount Type
Rack-mountable
