Eaton fuse disconnect rack PDU, 0U, L22-30P input, 17.3 kW max, 230/400V, 24A, 10 ft cord, Three-phase, Outlets: (24) C13 Outlet grip, (6) C19 Outlet grip
Manufacturer: Eaton Corporation
Mfr. Part: EMI351-10
NEMA L22-30P - 24 x IEC 60320 C13, 6 x IEC 60320 C19 - 17.30 kW - Network (RJ-45) - 38U - Vertical - Rack-mountable
About This Product
Overview
Eaton's fuse disconnect ePDUs offer higher amp interrupt capacity compared to circuit breakers giving the ability to clear higher fault currents. Additionally, the fuses can be safely changed without removing power to the PDU. Offered in Basic, Metered Input, Metered Outlet and Managed technologies, the fuse disconnect models include all of the same best-in-class features of the G3 platform.
- Higher amp interrupt rating compared to circuit breakers
- Ability to clear higher fault current

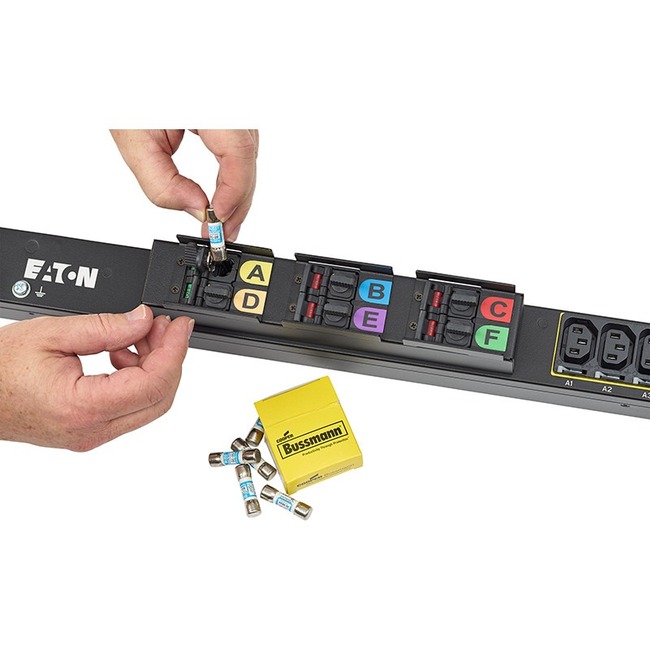

- Uses patented Eaton/Bussmann low profile Compact Circuit Protector (CCP) for hot-swap, finger-safe fuse changes
- New ePDU G3 models feature ±1% billing grade accuracy, an advanced LCD pixel display, a hot-swap meter and the ability to daisy chain eight ePDUs to share the same network connection and IP address
- Clearly labeled circuits simplify load balancing
- Integrates with Eaton network closet, server room and data center solutions
Quick Specifications
- Product Line
- ePDU
- Product Model
- EMI351-10
- Product Type
- PDU
- Plug/Connector Type
- NEMA L22-30P
- Plug/Connector Detail
- 1 x NEMA L22-30P
- Receptacle Type
- IEC 60320 C13 IEC 60320 C19
- Receptacle Detail
- 24 x IEC 60320 C13 6 x IEC 60320 C19
- Input Voltage Range
- 230 V AC - 400 V AC
