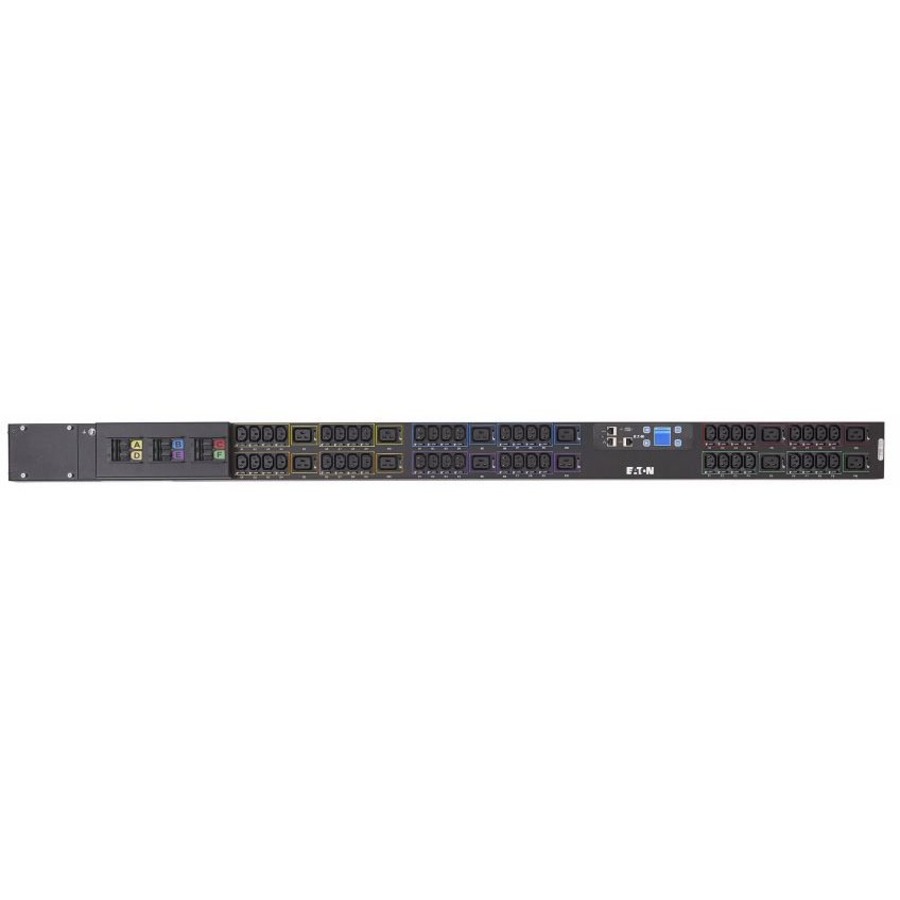

Eaton fuse disconnect rack PDU, 0U, Hardwired input, 17.3 kW max, 230/400V, 24A, Hardwired, Three-phase, Outlets: (48) C13 Outlet grip, (12) C19 Outlet grip

Manufacturer: Eaton Corporation
Mfr. Part: EMI355-HW

Hardwired - 48 x IEC 60320 C13, 12 x IEC 60320 C19 - 17.30 kW - Network (RJ-45) - 0U - Vertical - Rack-mountable

Eaton fuse disconnect rack PDU, 0U, Hardwired input, 17.3 kW max, 230/400V, 24A, Hardwired, Three-phase, Outlets: (48) C13 Outlet grip, (12) C19 Outlet grip

About This Product

Overview

Eaton Metered Input ePDUs provide remote monitoring of the current draw of individual sections via network communication. This capability, combined with state-of-the-art software allows you to aggregate the information from many ePDUs in one location. A local display is also available for phase balancing and for easy start-up and provisioning of servers. New ePDU G3Metered Input models feature best-in-class technologies, including ±1% billing grade accuracy, an advanced LCD pixel display, a hot-swap meter and the ability to daisy chain four ePDUs to share the same network connection and IP address.

  • PDU is reliable for power protection and management solutions
  • IEC 60320 C13 receptacle type to ensure maximum usability and reliable power output
  • Hardwired plug/connector type for better, dependable connectivity and desired power output

Quick Specifications

Product Line
Metered
Product Model
EMI355-HW
Product Type
PDU
Plug/Connector Type
Hardwired
Receptacle Type
IEC 60320 C13 IEC 60320 C19
Receptacle Detail
48 x IEC 60320 C13 12 x IEC 60320 C19
Input Voltage Range
230 V AC - 400 V AC
Power Rating (Watt)
17.30 kW
