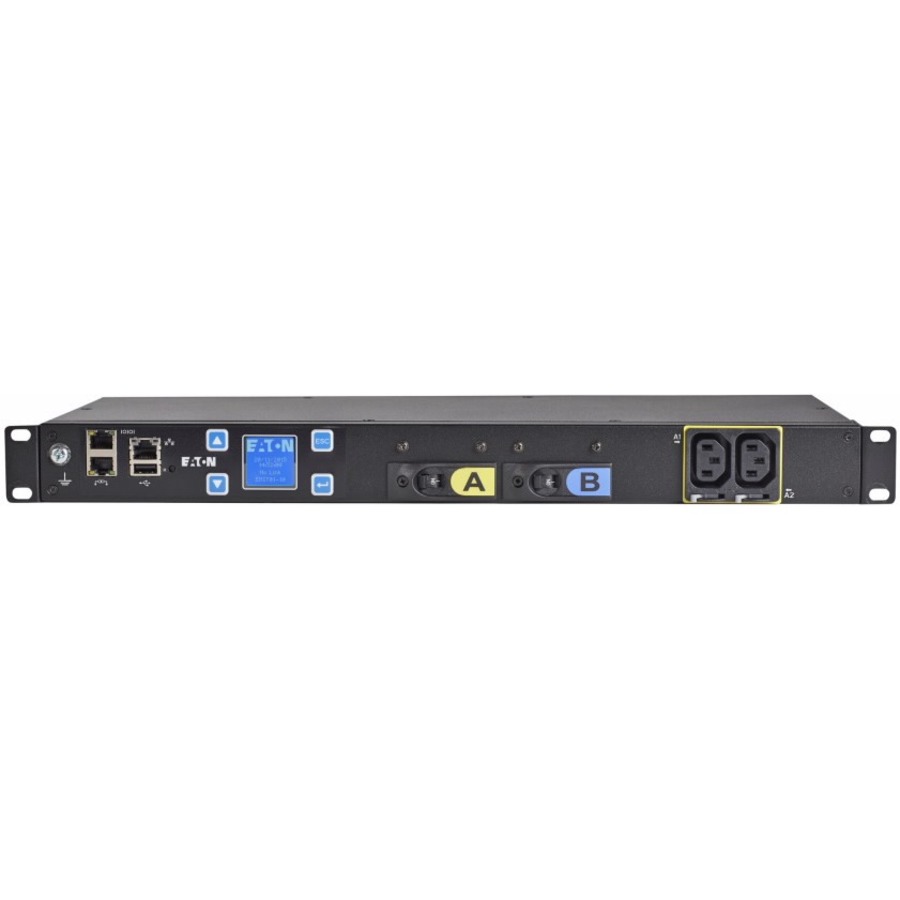

Eaton Metered Input Rack PDU 5.76 kW max 200-240V 24A 1U Single-Phase PDU

Manufacturer: Eaton Corporation
Mfr. Part: EMIT04-10

NEMA L6-30P - 8 x IEC 60320 C13, 4 x IEC 60320 C19 - 230 V AC - 5760 W - Network (RJ-45) - 1U - Horizontal

Eaton Metered Input Rack PDU 5.76 kW max 200-240V 24A 1U Single-Phase PDU

About This Product

Overview

Eaton Metered Input ePDUs provide remote monitoring of the current draw of individual sections via network communication. This capability, combined with state-of-the-art software allows you to aggregate the information from many ePDUs in one location. A local display is also available for phase balancing and for easy start-up and provisioning of servers. New ePDU G3 Metered Input models feature best-in-class technologies, including ±1% billing grade accuracy, an advanced LCD pixel display, a hot-swap meter and the ability to daisy chain four ePDUs to share the same network connection and IP address.

  • Electric power fitted to racks of computers and networking equipment within a data center
  • IEC 60320 C13 receptacle type to ensure maximum dependability and optimal performance
  • NEMA L6-30P plug/connector type for reliable, productive connectivity and optimal power output
  • 230 V AC input voltage for maximum feasibility and added productivity
  • 230 V AC output voltage for optimal performance with maximum feasibility

Quick Specifications

Product Line
ePDU
Product Series
Metered
Product Model
EMIT04-10
Product Type
PDU
Plug/Connector Type
NEMA L6-30P
Plug/Connector Detail
1 x NEMA L6-30P
Receptacle Type
IEC 60320 C13 IEC 60320 C19
Receptacle Detail
8 x IEC 60320 C13 4 x IEC 60320 C19
