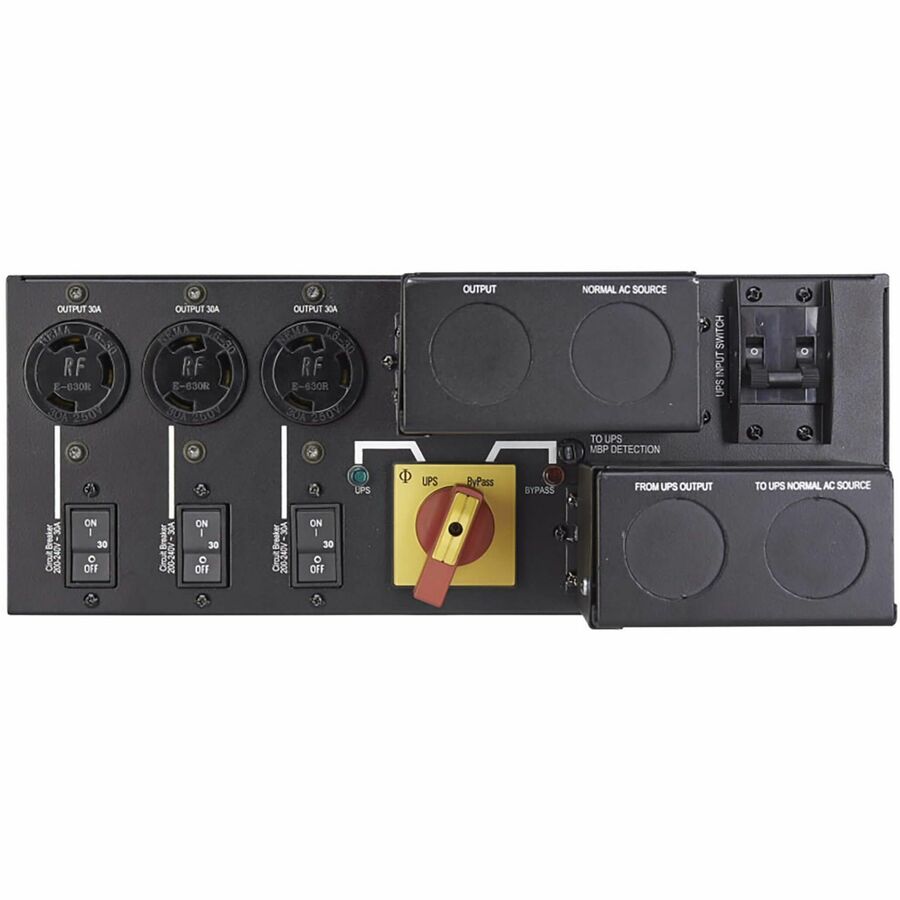

Eaton 9PX Maintenance Bypass for Select 8kVA to 11kVA 9PX UPS Systems, Hardwired Input/Output, 3 L6-30R Outlets, 3U Rack/Tower
Hardwired, 3 x NEMA L6-30R - 11000 VA - 208 V AC
About This Product
Overview
Compatible with Select Eaton 8kVA to 11kVA 9PX UPS Systems
The MBP11K208 works with Eaton's 9PX8K, 9PX8KHW, 9PX8KTF5, 9PX11K, 9PX11KHW, 9PX11KTF11 and 9PX11KTF5 UPS systems. The bypass switch lets you service or replace the UPS system without powering down any equipment and risking costly downtime. Power passes directly from the PDU to equipment.
Versatile Connection and Installation Options
The MBP11K208 features hardwired input and output connections. Three NEMA L6-30R outlets also allow load connection. You can mount the maintenance bypass switch in 3U of space in an EIA-standard 19-inch rack using the included 4-post rail kit. You can also adapt it for tower or wall installation using the included hardware.
- Isolates UPS from connected loads for maintenance without powering down equipment
- Designed for 3U rack, tower or wall mounting using the included installation hardware
- Compatible with Eatons 8kVA to 11kVA 9PX UPS systems
Quick Specifications
- Product Type
- Bypass Module
- Plug/Connector Type
- Hardwired
- Receptacles
- Hardwired 3 x NEMA L6-30R
- Load Capacity (VA)
- 11 kW
- Input Voltage
- 208 V AC
- Form Factor
- Rack-mountable
- Rack Height
- 3U
- Compatibility
- Eaton 9PX UPS: 8 kVA 11 kVA
