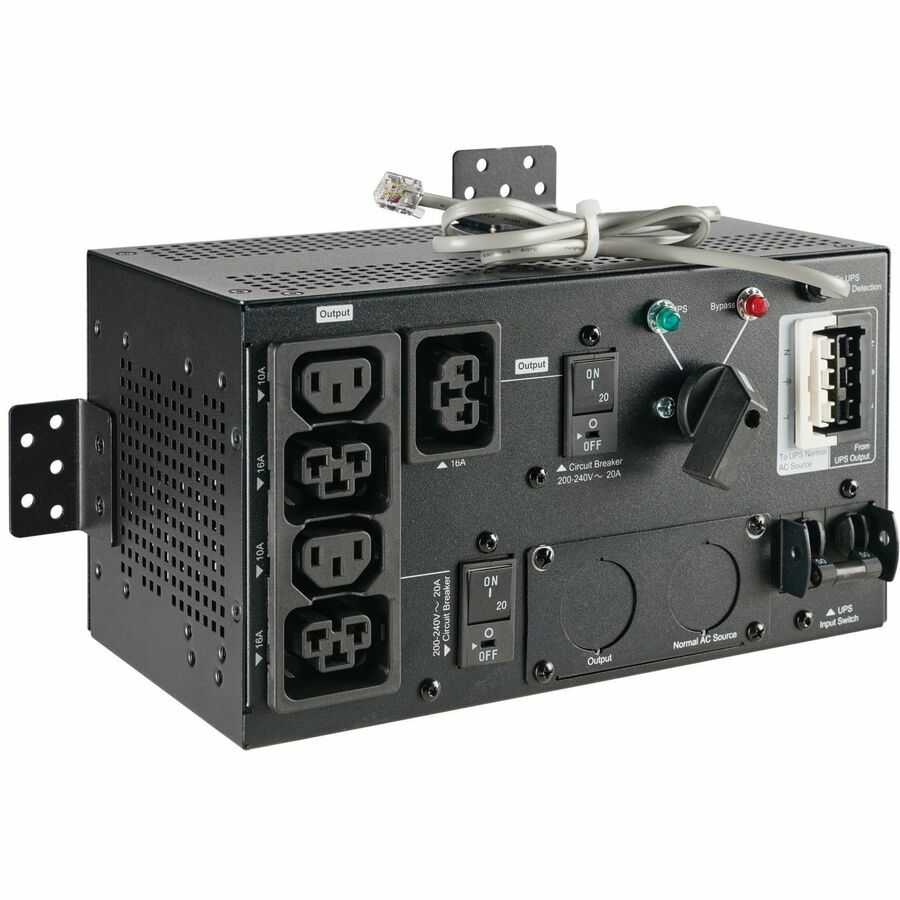

Eaton 9PX G2 Maintenance Bypass for 9PX6KIECG2 UPS System, Hardwired Input, 3 C39 and 2 C13 Outlets, 0U Rack/Tower/Wall
12 x IEC 60320 C13, 3 x IEC 60320 C39 - 6000 W/6000 W
About This Product
Overview
Features | Compatible with Eaton 9PX6KIECG2 9PX G2 UPS System
The MBP6KIECG2 works with Eaton's 9PX6KIECG2 UPS system. The bypass lets you service or replace the UPS system without powering down any equipment and risking costly downtime. Power passes directly from a power source to equipment when in bypass mode.
Versatile Connection and Installation Options
The MBP6KIECG2 features hardwired input, as well as two C13 and three C39 outlets. You can mount the maintenance bypass to the rear of the UPS or extended battery module (EBM) without taking up additional rack space. You can also mount the bypass on the side or top of the rack, on a wall or adapt it for tower installation using the included hardware.
- Isolates UPS from connected loads for maintenance without powering down equipment
- Designed for 0U rear rack mounting, tower or wall mounting using the included hardware
- C39 combo outlets accept C14 and C20 connectors, adding flexibility to deployments
- Compatible with Eaton's 9PX6KIECG2 9PX G2 UPS system
- 3-year limited warranty
Quick Specifications
- Product Model
- MBP6KIECG2
- Product Type
- Bypass Switch
- Plug/Connector Type
- Hardwired NEMA L6-30P
- Receptacles
- 12 x IEC 60320 C13 3 x IEC 60320 C39
- Load Capacity (VA)
- 6000 W
- Load Capacity (Watt)
- 6000 W
- Output Voltage
- 208 V AC 220 V AC 230 V AC 240 V AC
- Form Factor
- Rackmount/Tower/Wall-mountable
