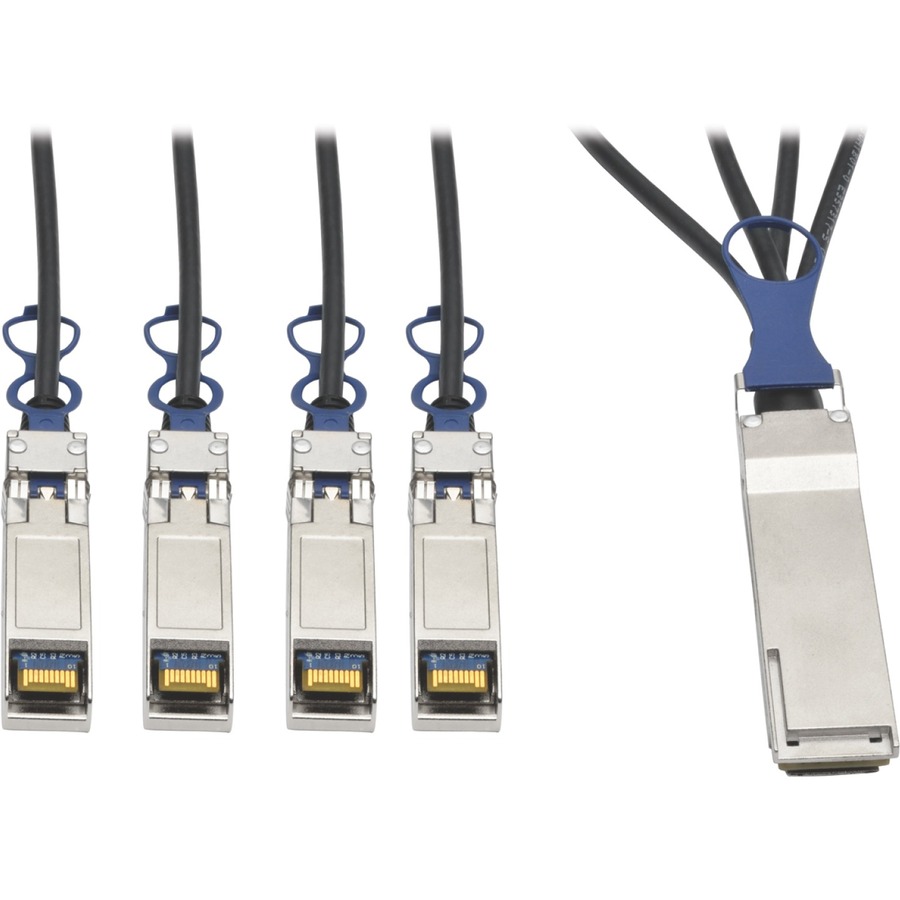

Tripp Lite by Eaton QSFP+ to 10 GbE SFP+ Passive DAC Breakout Cable (M/M) QSFP+ to (x4) SFP+ Compatible to Cisco QSFP-4SFP10G-CU1M 1M (3.28 ft.)
QSFP+/SFP+ for Network Device, Switch, Server - 5 GB/s - 3.28 ft - 1 x QSFP+ Male Network - 4 x SFP+ Male Network - Black"
About This Product
Overview
The N281-01M-BK 40 GbE QSFP+ to 10 GbE SFP+ Passive DAC Copper Breakout Cable provides next-generation performance by connecting your 40 GbE QSFP+ system to four 10 GbE SFP+ servers, switches and/or adapters. It's ideal for connecting active network equipment in data centers, high-end servers and enterprise wiring closets.
This one-meter hot-pluggable cable features zinc die-cast QSFP+ and SFP+ male connectors for superior EMI resistance, minimal insertion loss and low crosstalk for better performance. Ergonomic pull-tab ejectors make connecting to equipment a quick, easy task. Eight-pair wire technology is optimized for bandwidth-intense applications, including 40-Gigabit Ethernet (40GBASE-CR4), 10GBASE-CR4, 6G SAS, Fibre Channel and SONET.
Flexible 30 AWG conductors maintain a smooth high-frequency response (20 GHz). The N281-01M-BK undergoes a rigorous assembly and testing procedure aimed at eliminating unnecessary signal loss. It's fully compliant with the MSA (Multi-Source Agreement) SFF-8431 and SFF-8436 architecture for guaranteed compatibility with all QSFP and QSFP+ ports. Compatible with SDR, DDR and QDR.
- Supports serial data rates up to 40 Gbps
- Complies with MSA SFF-8431 and SFF-8436 specifications
- SDR, DDR and QDR compatible
- Zinc die-cast QSFP+ and SFP+ male connectors
- Pull-tab ejectors for quick, easy connections
Quick Specifications
- Product Model
- N281-01M-BK
- Product Type
- Network Cable
- Cable Type
- QSFP+/SFP+
- Cable Length
- 3.30 ft
- Connector Type on First End
- QSFP+ Network - Male
- Connector on First End Details
- 1 x QSFP+ Network - Male
- Connector Type on Second End
- SFP+ Network - Male
- Connector on Second End Details
- 4 x SFP+ Network - Male
