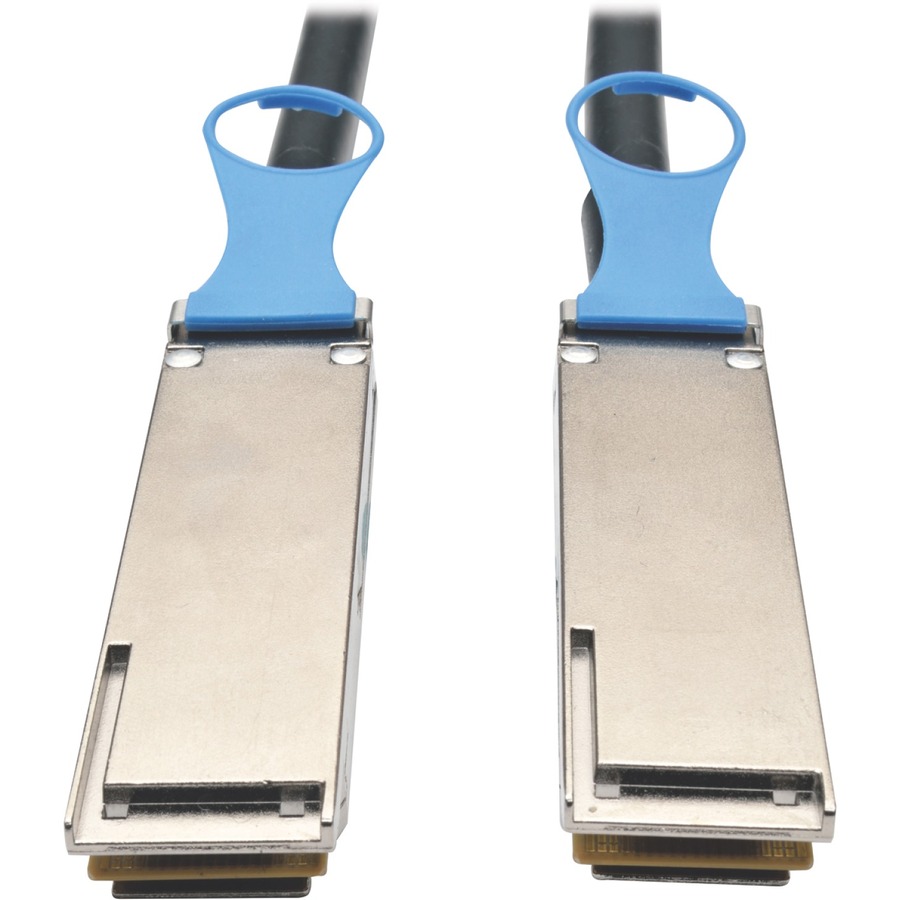

Tripp Lite by Eaton 3M QSFP28 to QSFP28 100Gbe Passive DAC Copper InfiniBand Cable QSFP-100G-CU3M Compatible 10ft
InfiniBand for Network Device - 12.50 GB/s - 1 x QSFP28 Male Network - 1 x QSFP28 Male Network - Black
About This Product
Overview
The N282-03M-28-BK QSFP28 to QSFP28 100GbE Passive DAC Copper InfiniBand Cable provides next-generation performance by combining four 28 Gbps SFP channels into one high-density cable. It's ideal for connecting active network equipment in data centers, high-end servers and enterprise wiring closets.
This three-meter copper cable integrates a 100G Ethernet-optimized (100 GbE) 38-position "board-as-connector" design with zinc die-cast male QSFP+ connectors for superior EMI resistance, minimal insertion loss and low crosstalk for better performance. Ergonomic pull-tab ejectors make connecting to equipment a quick, easy task. Eight-pair wire technology is optimized for bandwidth-intense applications, including 100-Gigabit Ethernet (100GBASE-CR4), 128G Fibre Channel and EDR 4x InfiniBand.
Flexible 26 AWG conductors maintain a smooth high-frequency response. The N282-03M-28-BK undergoes a rigorous assembly and testing procedure aimed at eliminating unnecessary signal loss. It's fully compliant with the MSA (Multi-Source Agreement) SFF-8665 architecture for guaranteed compatibility with all QSFP and QSFP+ ports, as well as RoHS and IEEE 802.3bj.
- Provides a simple and efficient way to connect multiple devices within your business network, ensuring smooth communication and reliable data transfer
- Features InfiniBand cable type for high-throughput, low-latency data transfer in advanced computing environments, ensuring efficient system interconnect
- Passive feature designed for convenience and ease of use, ensuring smooth operation and improved functionality across supported devices
- Features QSFP28 Network - Male connector to make connecting a network device easy, ensuring hassle-free setup and steady performance
Quick Specifications
- Product Model
- N282-03M-28-BK
- Product Type
- Network Cable
- Cable Type
- InfiniBand
- Cable Length
- 10 ft
- Connector Type on First End
- QSFP28 Network - Male
- Connector on First End Details
- 1 x QSFP28 Network - Male
- Connector Type on Second End
- QSFP28 Network - Male
- Connector on Second End Details
- 1 x QSFP28 Network - Male
