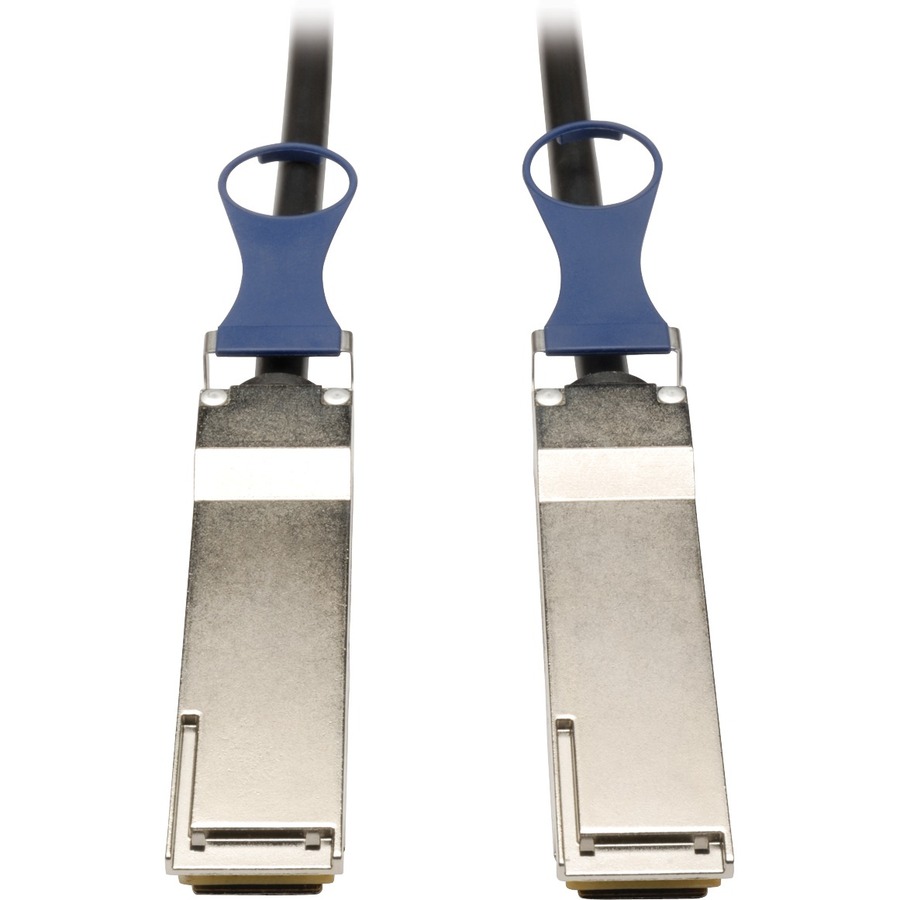

Eaton Tripp Lite Series QSFP+ to QSFP+ 40Gb Passive DAC Copper Infiniband Cable, 0.5M (20-in.)
1.70 ft QSFP+ Network Cable for Network Device - First End: 1 x QSFP+ Network - Male - Second End: 1 x QSFP+ Network - Male - Patch Cable - Black
About This Product
Overview
Tripp Lite's 0.5M (20-in.) QSFP+ 40GBASE-CR4 / 802.3ba qualified passive copper cable provides next generation performance by combining four 10 Gb/s SFP+ channels into one affordable high-density package. Our QSFP+ cables integrate a new 40G Ethernet-optimized (40GbE) 38-position "board-as-connector" design, with zinc die-cast backshells for superior EMI resistance, minimal insertion loss, and improved cross-talk performance. Cable featuress 8-pair wire technology optimized for bandwidth-intense applications including 40-Gigabit Ethernet (40GBASE-CR4), 6G SAS, Fibre Channel and SONET. Flexible 30 AWG conductors maintain a smooth, high-frequency response (20 GHz). Each 1m (3.3-ft) length QSFP+ cable goes through a rigorous assembly and test procedure aimed at eliminating unnecessary signal loss. Our cables are fully compliant to the QSFP+ MSA and SFF-8436 architecture for guaranteed compatibility with all QSFP and QSFP+ ports.
- 40Gbps QSFP+ to QSFP+ 0.5M (20-in.) patch cable
- Meets or Exceeds 40-Gigabit Ethernet 4oGBASE-CR4 standards
- Fully compliant to the latest QSFP+ MSA ( Multi Source Agreement )
- SDR, DDR, and QDR Compatible
Quick Specifications
- Product Model
- N282-20N-BK
- Product Type
- Network Cable
- Cable Type
- QSFP+
- Cable Characteristic
- Patch Cable
- Cable Length
- 1.70 ft
- Connector Type on First End
- QSFP+ Network - Male
- Connector on First End Details
- 1 x QSFP+ Network - Male
- Connector Type on Second End
- QSFP+ Network - Male
