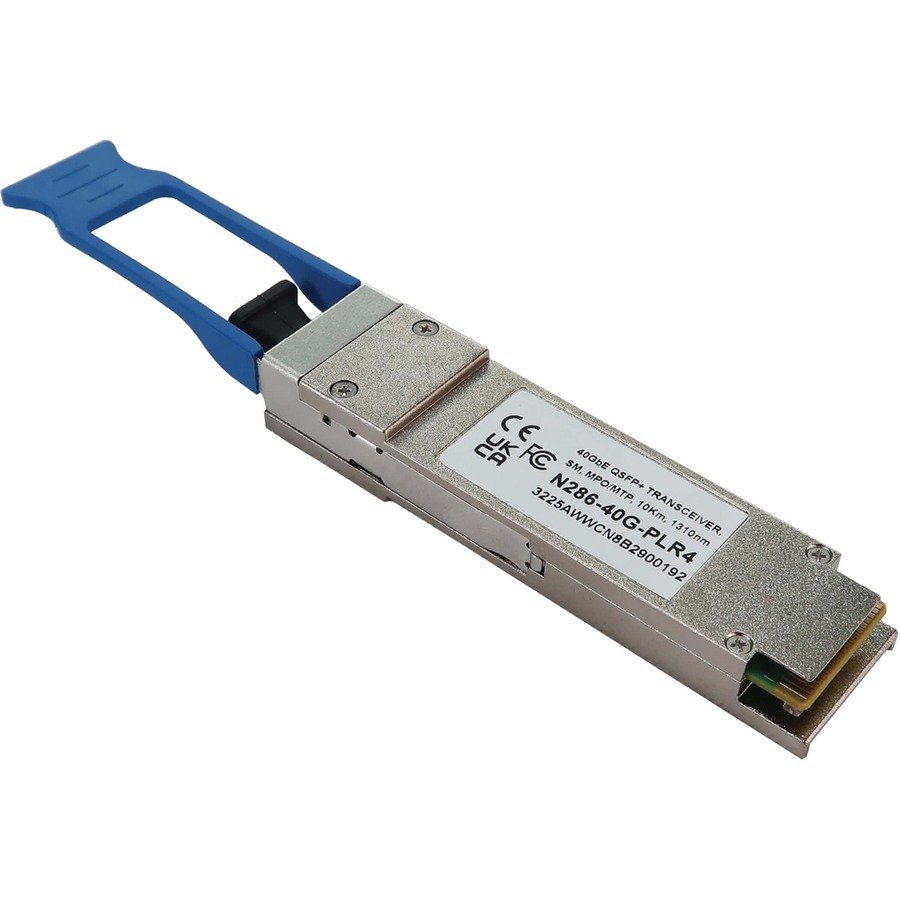

Tripp Lite by Eaton Cisco-Compatible QSFP+ Transceiver - 40GBase-PLR4, Singlemode MPO/MTP, 1310 nm, 10 km (6.2 mi.)
For Data Networking, Optical Network - 1 x MPO/MTP 40GBase-PLR4 Network - Optical Fiber - 1270 nm, 1310 nm, 1330 nm - Single-mode - 40 Gigabit Ethernet - 40GBase-PLR4 - 40 Gbit/s - 32808.40 ft Maximum Distance - Hot-swappable
About This Product
Overview
Features | QSFP+ Transceiver Designed for Connection to Your Cisco Network Switch or Server
This QSFP+ transceiver allows you to connect a singlemode fiber optic cable to a 40 Gbps network router, server or switch. It transmits data up to 10 kilometers (6.2 miles) using a 1260 to 1360 nm wavelength. The zinc housing protects against electromagnetic interference (EMI) and excessive power dissipation.
Functionally Equivalent to Cisco QSFP-4X10G-LR-S Transceiver Module
The MSA-compliant N286-40G-PLR4 functions just like the equivalent Cisco QSFP-4X10G-LR-S transceiver module and is manufactured to meet or exceed Cisco specifications. You can use this transceiver with any compatible Cisco router, server or switch and receive the same performance as the QSFP-4X10G-LR-S.
Hot-Swappable for Installation Without Network Interruption
This input/output device is fully hot-swappable, so you can install it without a potentially costly network shutdown or device reboot. Just plug the QSFP+ end of the transceiver into your Cisco network device. The other end has an MPO/MTP connector to link with singlemode fiber optic cable (sold separately). A push/pull tab connector is easily accessible in high-density data center applications and makes the plug-and-play transceiver easy to install and remove with one hand.
- QSFP+ offers enhanced dependability with maximum productivity
- With 40GBase-PLR4 technology, enjoy up to 40Gbps data transfer rate over optical fiber cable
- 40Gigabit Ethernet - Designed to provide high-performance Ethernet connection while minimizing power and CPU cycles' utilization
- Supports optical fiber cable for durable performance, minimal signal loss, and fast data transfers to greater distances
- For transmitting data at gigabit speed over hundreds of miles with little integrity loss, single-mode fiber optic is an ideal solution
- Hot-swappable form factor for added reliability and dependability
- QSFP+ with data networking application/usage for maximum dependability and convenience
Quick Specifications
- Product Model
- N286-40G-PLR4
- Product Type
- QSFP+
- Application/Usage
- Data Networking Optical Network
- Total Number of Ports
- 1
- Connector Type
- MPO/MTP
- Interfaces/Ports Details
- 1 x MPO/MTP 40GBase-PLR4 Network
- Media Type Supported
- Optical Fiber
- Fiber Optic Cable Wavelength
- 1270 nm 1310 nm 1330 nm
